DC12V 18CH Relay Remote Switch 2* Receiver 18 Button Remote 2*Transmitter Contact RX TX ASK Light Lamp Smart Home Wireless

DC12V 18CH Relay Remote Switch

Receiver

Working Voltage :  DC 12V

Quiescent Current : less than 8mA

Working Temperature: -20'C- +70'C

Receiving sensitivity: more than -105dBm

Working Frequency: 315MHZ

Output Type: Input DC12V Output 0V Switching Value use Relay NO COM NC

Relay: 10A Relay have better load less than 5A

Size:133mm*74mm*18mm

Working Mode:

1--------18CH Toggle  use " 1 " Button to Learn

2--------18CH Momentary use " 2" Button to Learn

3--------18CH Latched use "3" Button to Learn

4--------1-9CH Toggle,10-18CH Momentary use "4 " Button to Learn

5--------1CH Toggle , 2-18CH Momentary use " 5 " Button to Learn

Learning Code:

Input DC12V for the Receiver, Press the Learning Button on the Receiver ,LED Indicator ON ,Release it, then press the relative Transmitter Button, Receiver LED Indicator flash for 1 time, it mean learning is successful.

Clearing Code:

Input DC12V for the Receiver, press the learning button on the receiver and hold for about 8s until the Receiver LED indicator OFF, it mean the code have been cleared.

the Receiver can keep 30 pcs different code transmitter

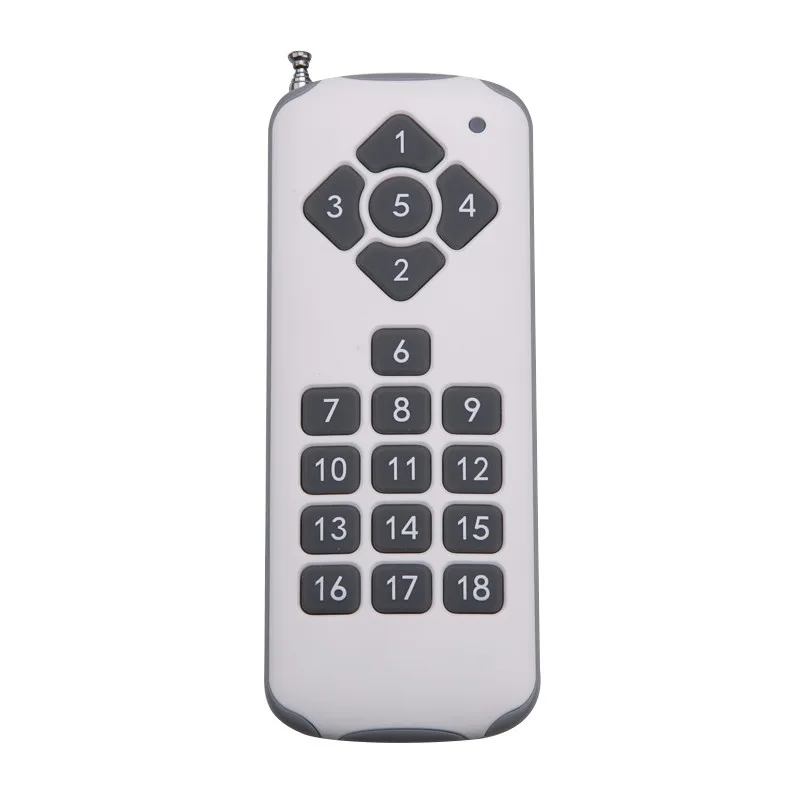

Transmitter

Working voltage: DC12V 23A Battery

Working Current: less than 25mA

Working Frequency:315MHZ

Transmitting Power:18mW

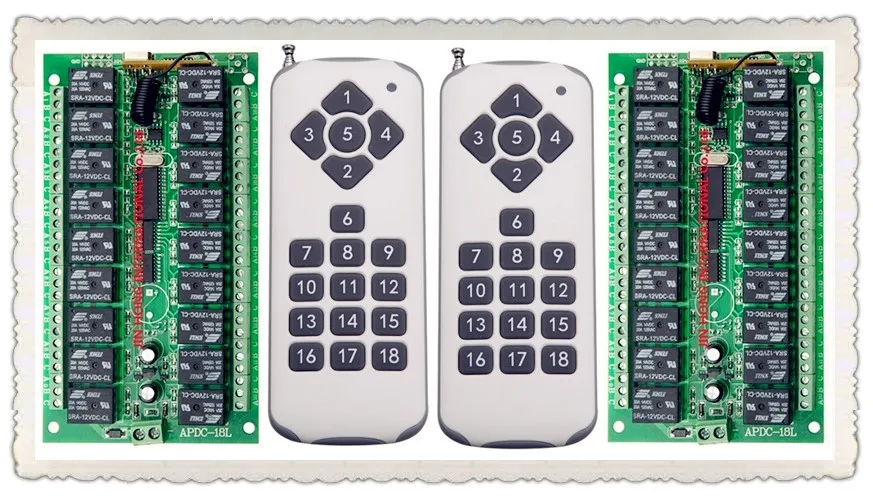

package included

2* remote
2* receiver
