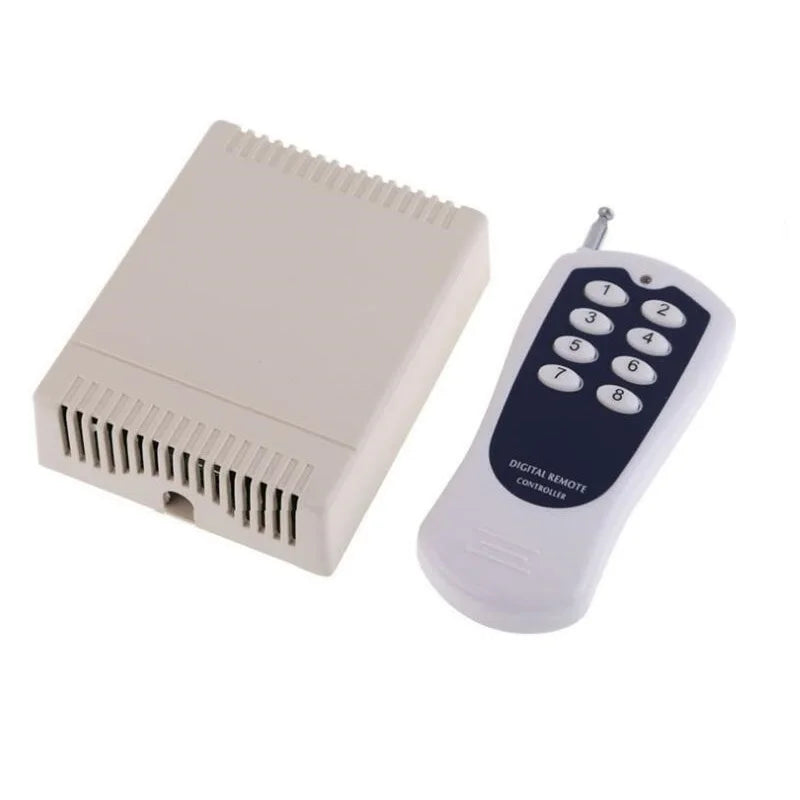

DC12V 24V 8CH 8 Channel Wireless Remote Control LED Light Switch Relay Output Radio RF Transmitter And 315/433 MHz Receiver

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency !

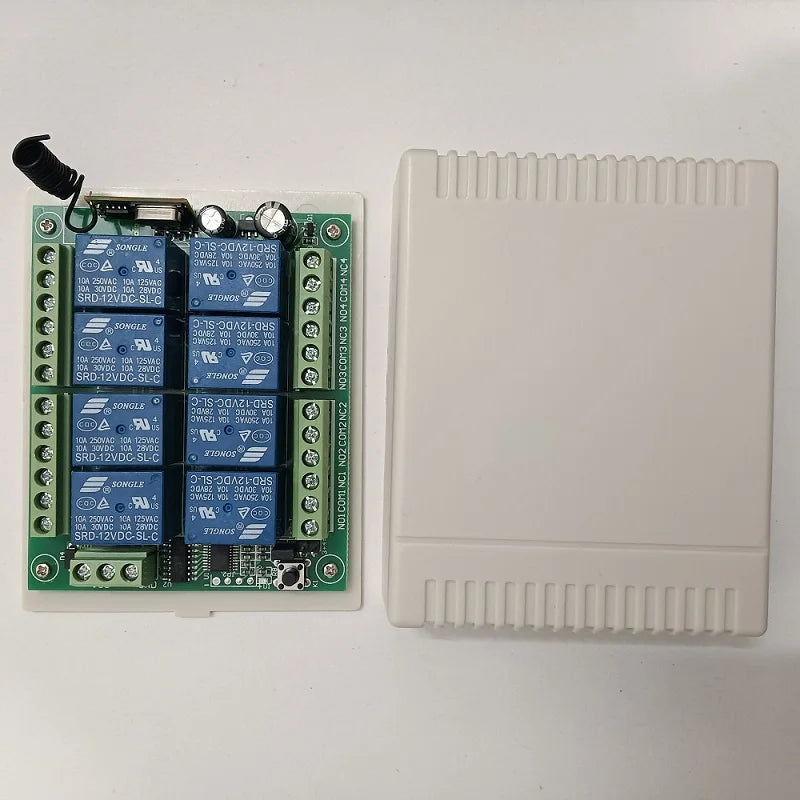

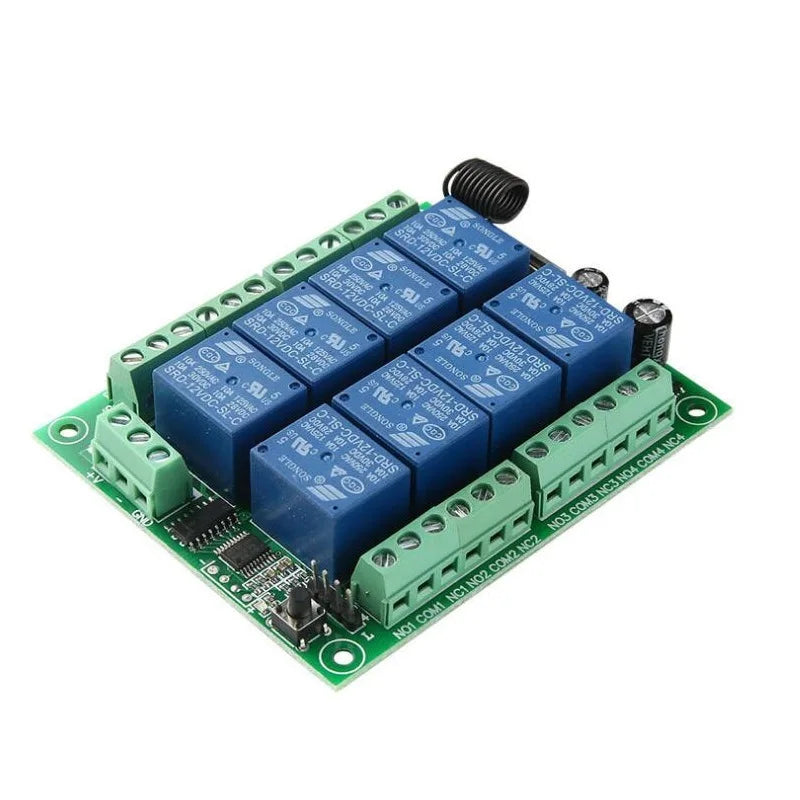

Receiver

Decode: Learning Code

Control Type: Toggle, Momentary, Latched

Power Supply (Operating Voltage): DC 12V / 24V

Relay: 10A 250VAC 10A 125VAC 10A 30VDC 10A28VDC

Work Voltage Range of Relay: DC 0-28V

State current: ≤6 mA

Sensitivity:-105 dBm

Operating Temperature:-40‘C - 80’C

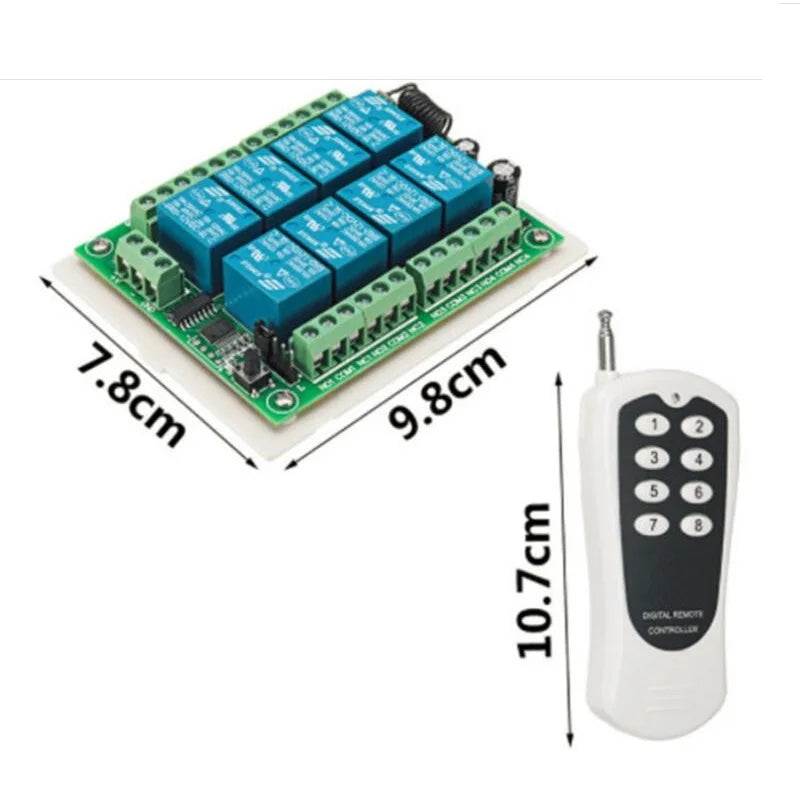

Size:87 X 77 X 26 mm

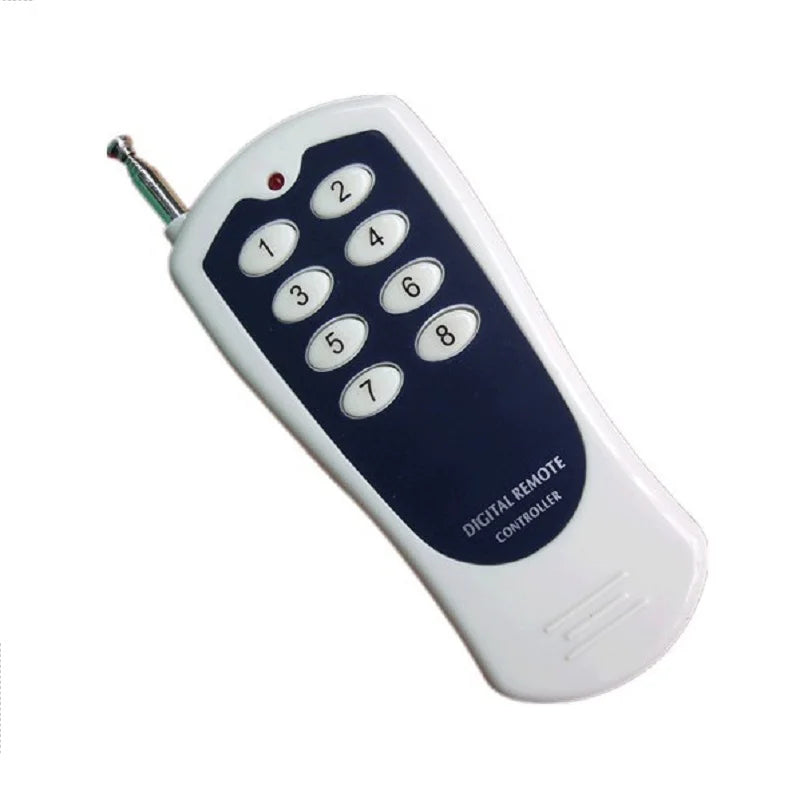

Transmitter

Channel: 8 CH

Remote Control Distance:50-1000 M ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)

Encode: PT2262

Frequency:315 or 433 MHz

Size: 125mm x 49mm x 20mm

Power Supply: 1 X 12V/23A Battery

3.Function (Original Setting is  Momentary , Change it by yourself.)

1).Toggle/Self-lock :Press 1 button==>on,press the same button again==>off

2) Momentary/Jog:Press and hold==> on, release==>off

3)Latched/inter-lock:press 1 button ==>on,press other button==>off

4.Clear Code and Learn Code

1) Learn

press the learning button 1 time,the learning LED turns on,then press the transmitter key to learn.the learning led flashs and turns off. means learn sucessfully.

2) Clear

press the learning button for 5 seconds,the learning LED flashs and turns off, that means the code has been cleared.

pacote inclued:

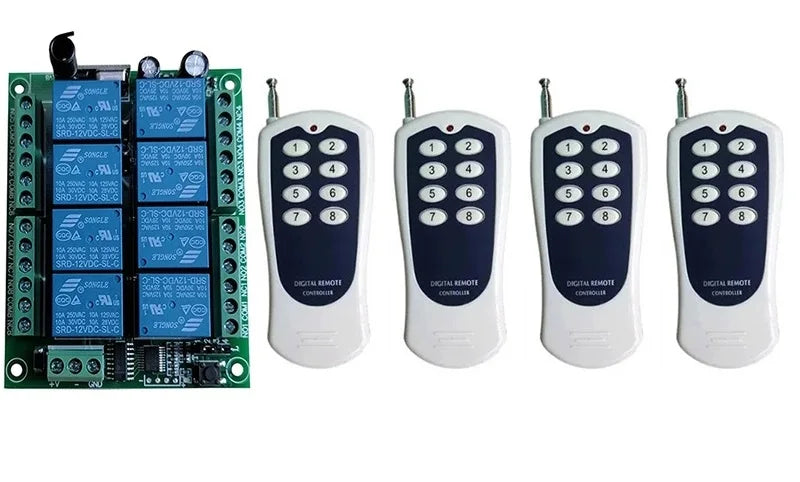

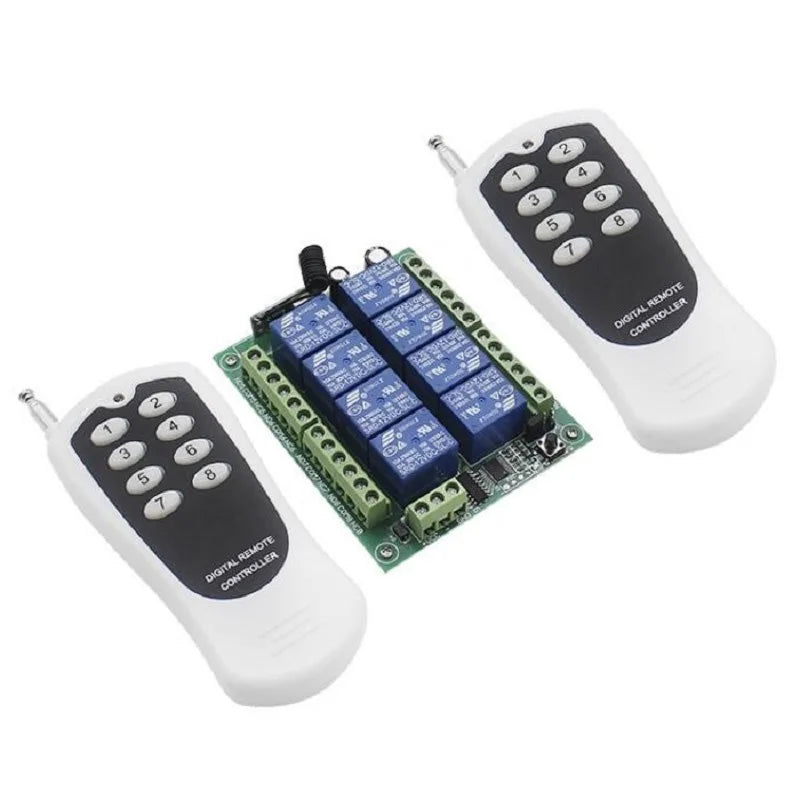

A:

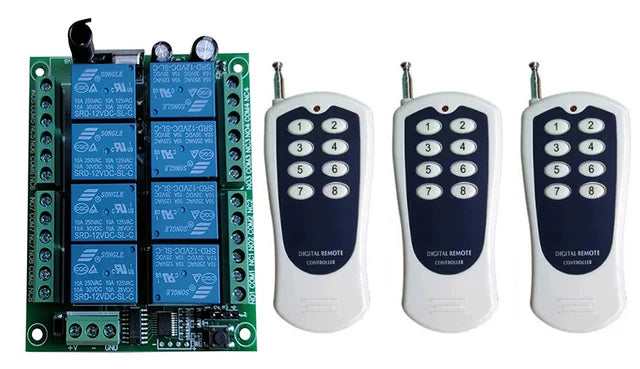

B:
