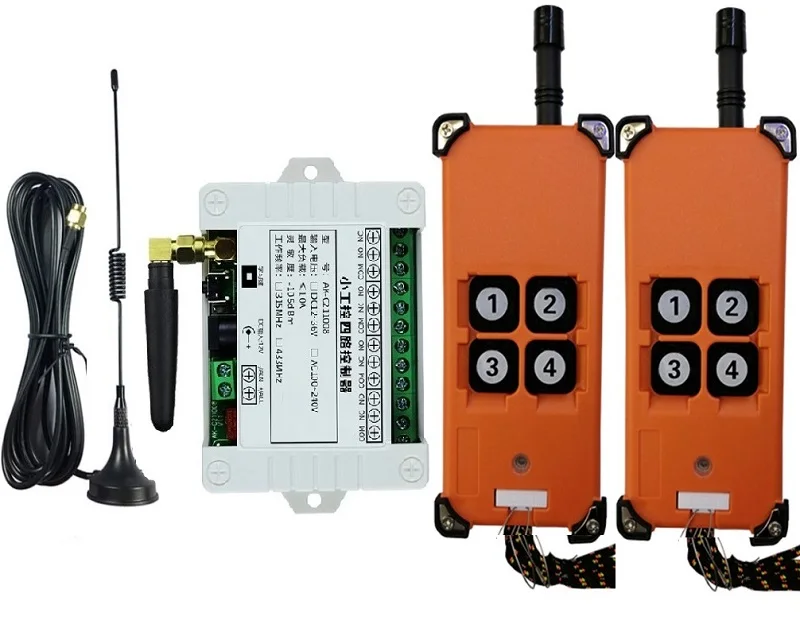

AC110V 220V 240V 4CH RF Wireless Remote Control Switch Radio Receiver With 2000M Long Distance Remote controller Suckers antenna
AC110V 220V 240V 4CH RF Wireless Remote Control Switch Radio Receiver With 2000M Long Distance Remote controller Suckers antenna
Couldn't load pickup availability

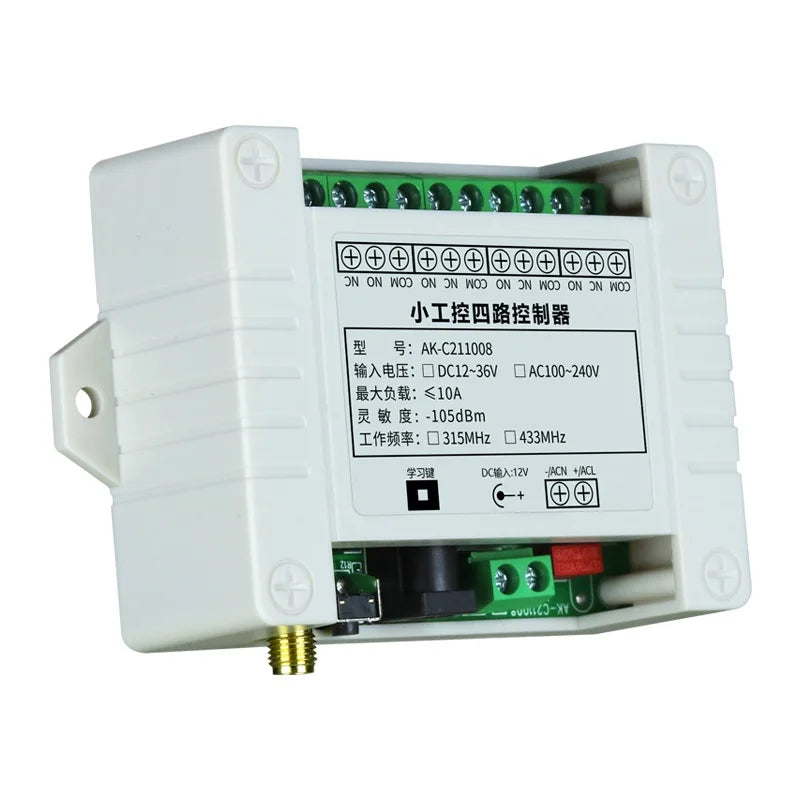

1.Working Voltage: AC110V 220V
2.Current:Standby less than 10mA,Working less than 128mA
3.Working Temperature: -10'C—+60'C
4.Receiver Frequency: 315MHz/433.92MHZ
5.Receiving Sensitivity: -105dB
6.Output State: Switching Value
7.Max Load:10A Relay, Resistive load less than 8A,Inductive load less than 3A
8.Case Size:96* 80 * 29mm
Encoding Type: Learning Code
Add transmitter by the Learning Button on the receiver
About Working way:
Working way changed by Learning button
Momentary: Press the Learning Button 1 times.
Relay: Press and hold -> On; Release -> Off.
Toggle: Press the Learning Button 2times.
Relay: Press -> On; Press same button again -> Off·
Latched:Press the Learning Button 3 times.
Relay: Press -> On; Press other button -> Off.
2channel Momentary+2channel Latched: Press the Learning Button 4 times.
2channel Momentary+2channel Toggle: Press the Learning Button 5 times.
2channel Toggle+2channel Latched: Press the Learning Button 6 times.
About Learning and clearing Method:
Learning: Press learning button, the indicator flashes and OFF, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times press the learning button according to the working way you need)
Clearning: Hold press learning button about 8 seconds,indicator light flashes several times and off,then press remote ,Relay did not Respond ,it means clearning code successful.
Momentary-----Press the transmitter button A,the receiver relay A is ON; Release button A ,The receiver relay A is OFF ,The same as B/C/D
Toggle--------Press the transmitter button A For 1 time ,the receiver relay A is ON; Press button A again,The receiver relay A is OFF ,The same as B/C/D
Latched------
Press transmitter button A,the receiver relay A is ON,the relay B/C/D is OFF
Press transmitter button B,the receiver relay B is ON,the relay A/C/D is OFF
Press transmitter button C,the receiver relay C is ON,the relay A/B/D is OFF
Press transmitter button D,the receiver relay D is ON,the relay A/B/C is OFF
It mean ,Latched only can keep 1CH ON,and it will ofen have 1CH is ON

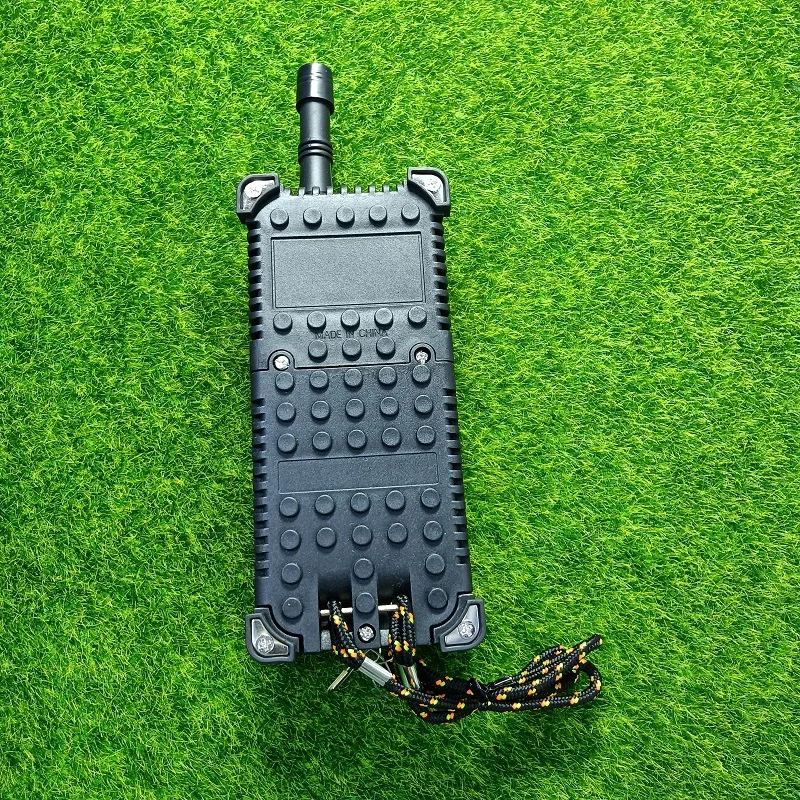

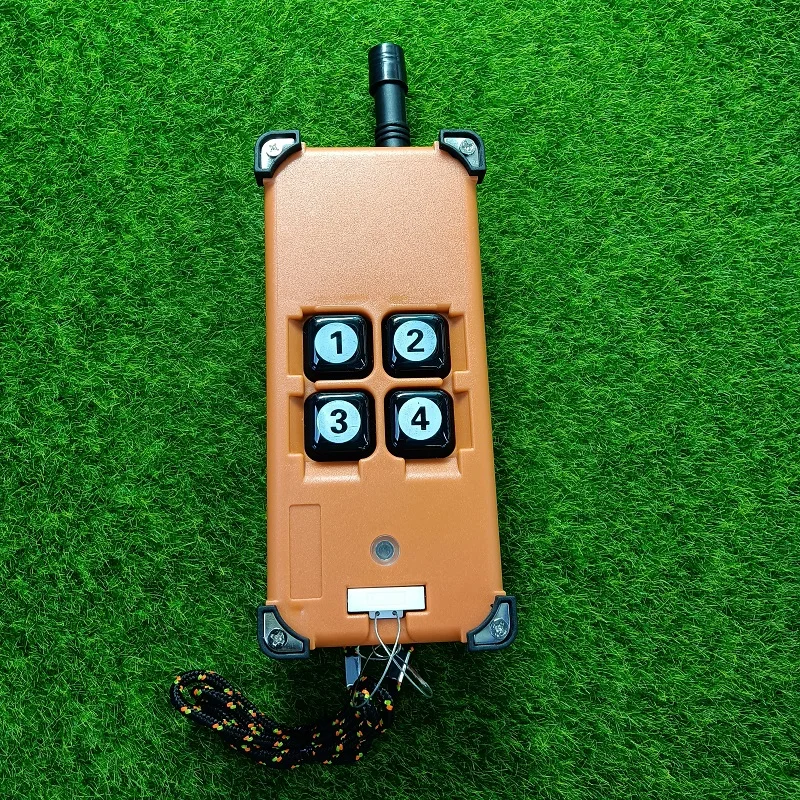

About Transmitter:
Note: only have 315mhz are available ,315mhz will be sent you thank you!!
Encode:fixed code2264
Frequency:315MHZ

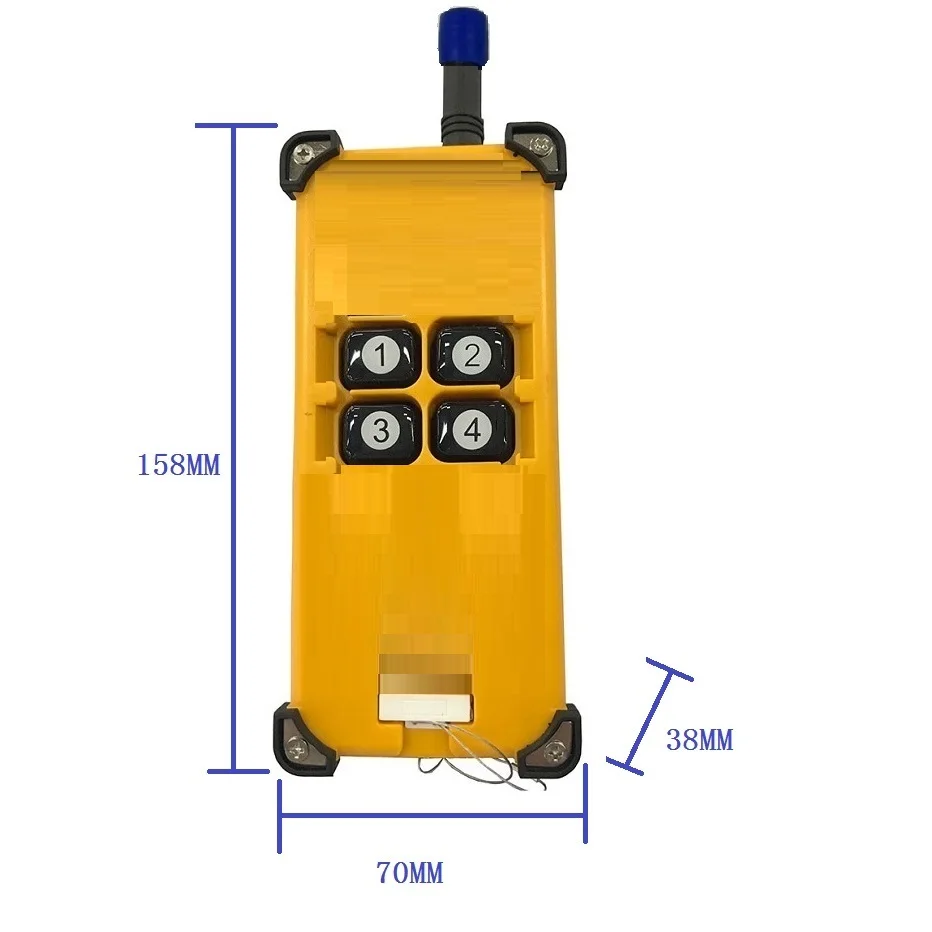

Size:70*158*38m

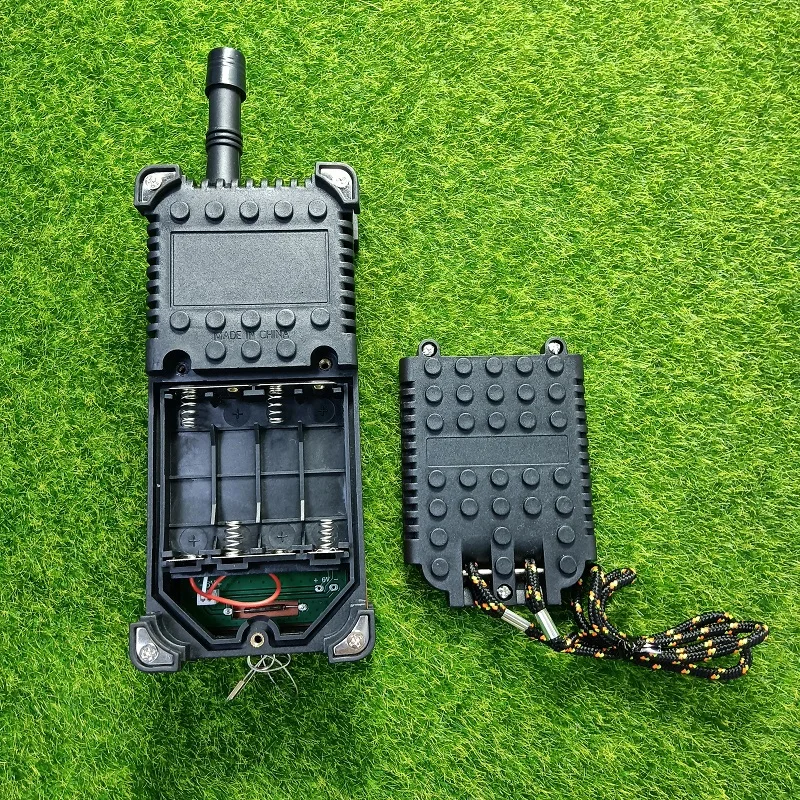

Power Supply:DC6V(4 section 5 batteryNote that the batteries do not match)
package included:
A:
1 x Transmitter(not with battery)
