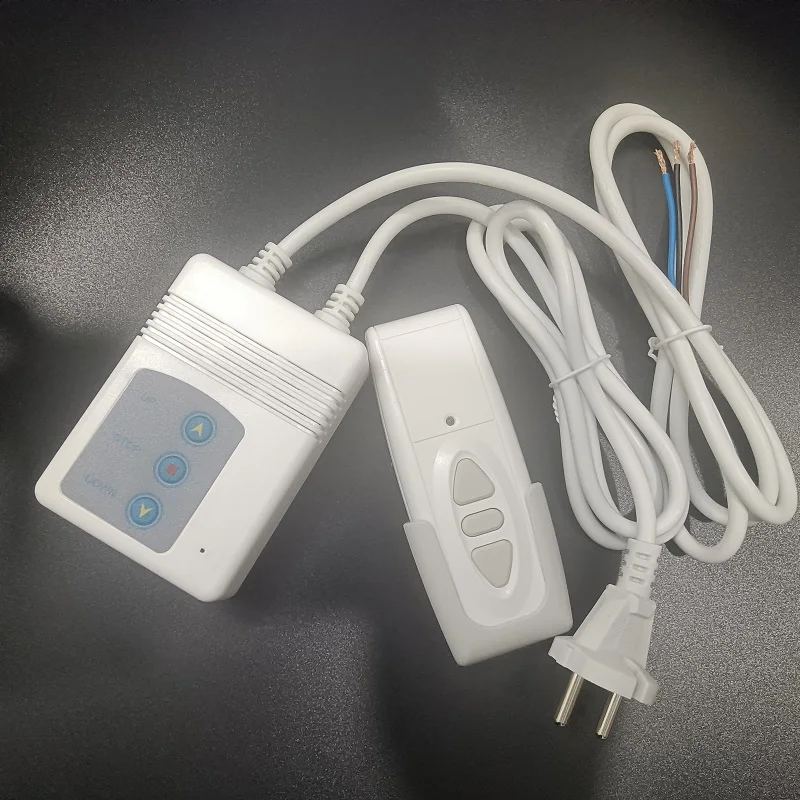

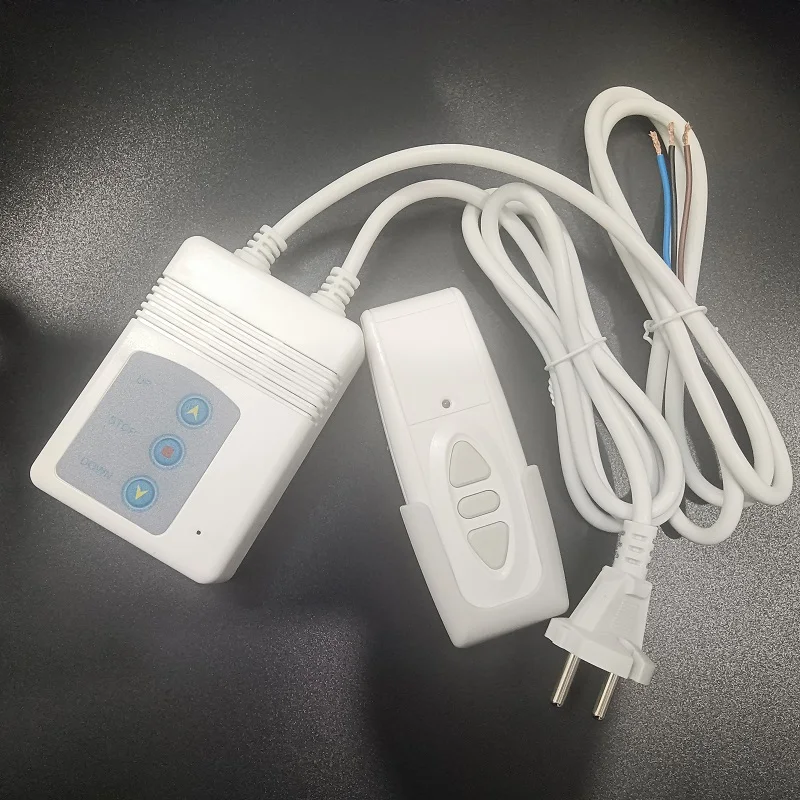

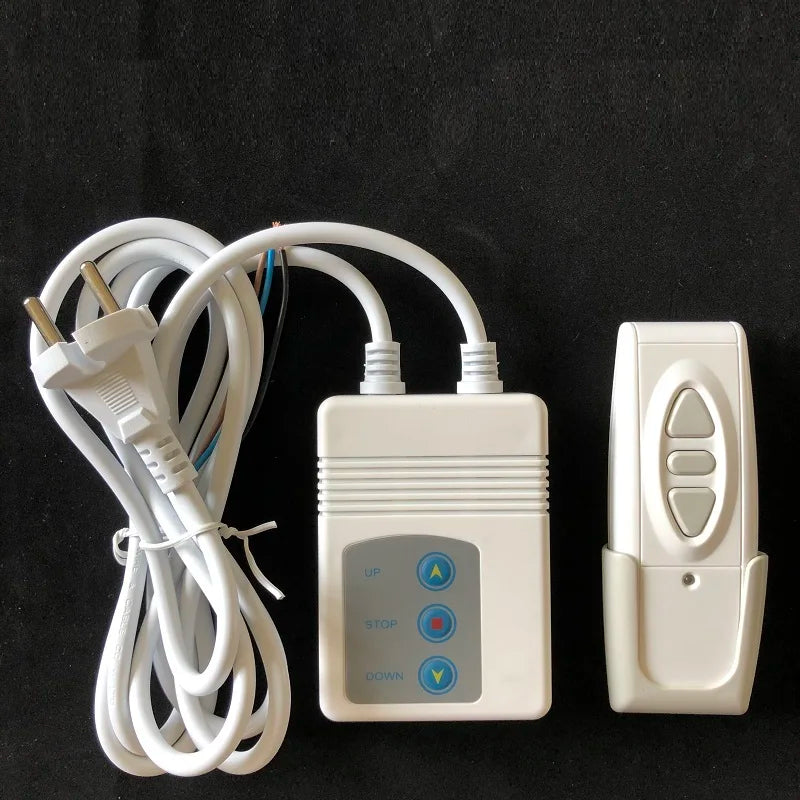

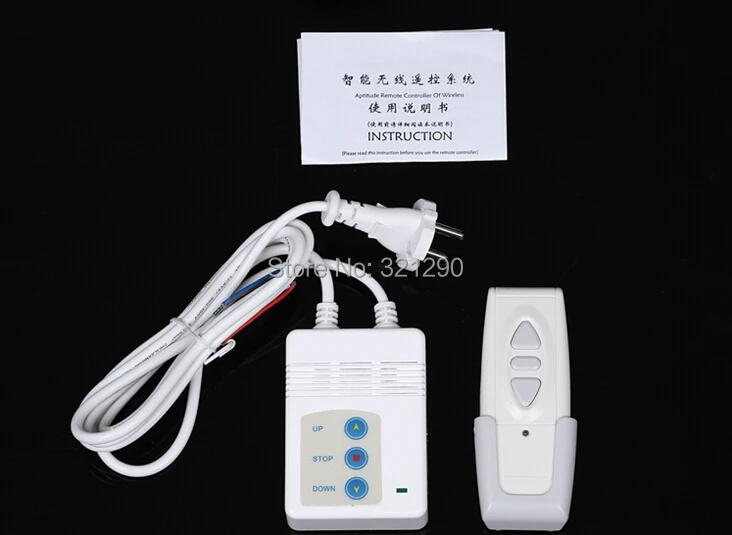

110V 220V 315MHZ Electromotor Projection Screen Controller Electrical Curtain Motor Wireless Remote Control Switch Receiver

110V 220V Electromotor Projection Screen Controller Electrical Curtain Motor Wireless Remote Control Switch Receiver

Product parameters:

1, remote control receiver

2, lift switch, manual control, electric lift control interface.

3, elegant style, easy to use.

4. The voltage is 220 v

Product features:

1, this product USES the import IC chip assembly and become, has the advanced technology, reasonable design, beautiful shape.

2, use high group number encoding, decoding circuit, the small probability weight code, safe and reliable.

3, remote control and manual control is fully compatible with, the operation simple and convenient.

4, the remote control for the automatic learning, can be used multiple remote control handle.

Scope of application:

This product is used for voltage AC220V / 50 to 60 hz (other specifications can be customized), ac motor is, stop control, such as electric screen, curtain, shade screens, electric door, etc.

Technical indicators:

1, voltage: AC220 plus or minus 10%

2, load power: 500 w or less

3, working frequency: 315 MHZ

4, remote control distance: 50 to 100 meters (open)

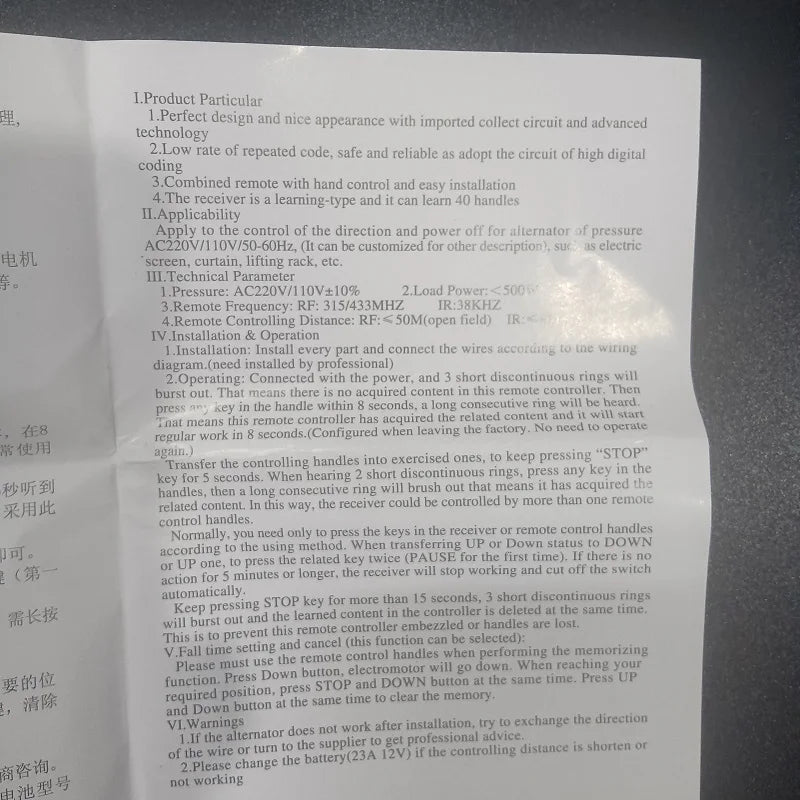

Installation and use:

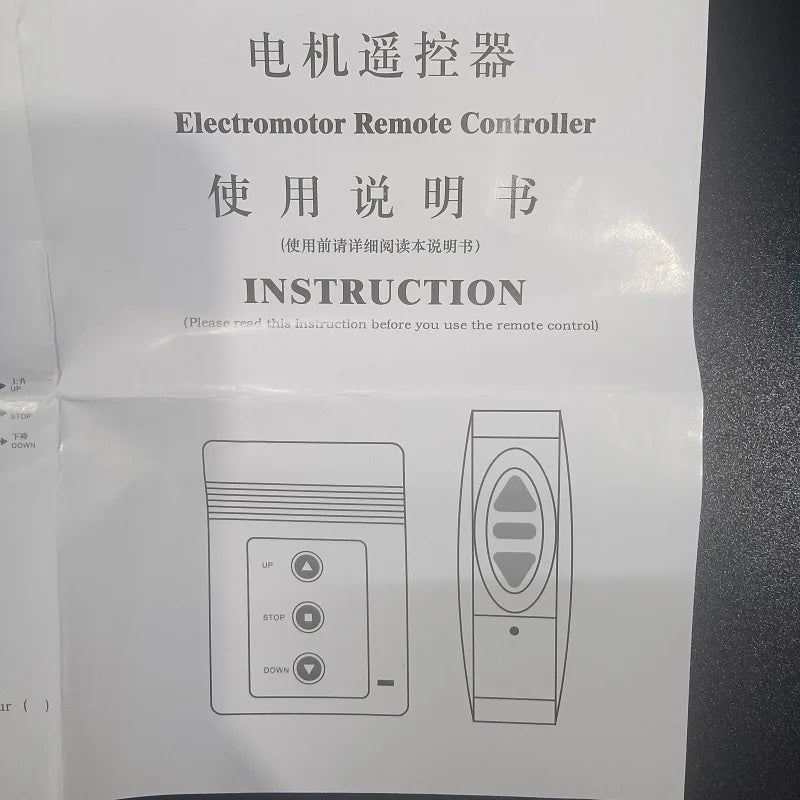

1. Installation: installed according to drawing after fastening button wiring can be according to the drawing (by professional installation is required).

2. Use: such as connected to the power to hear a short three, that without learning content in the remote control, including 8 by the remote control handle any key within seconds after heard sirens a learning success, can turn into normal use (factory have been debugging is completed, general need not).

3. If you want to learn more remote controller for the remote control using the handle, press the STOP button more than 5 seconds after heard two short sound press any button remote control handle, when heard sirens learning success. Using this method to study multiple remote controller to control the machine.

4. If you want to remove the remote control is being taught with more than 15 seconds long press the STOP button, when they hear three short song said content has been removed. In accordance with the above method to study the handle again.

Note:

1, if the motor doesn't work after installation can exchange direction line a try.

2, such as remote control distance can't remote control, please replace the remote control battery (23 a 12 v)
