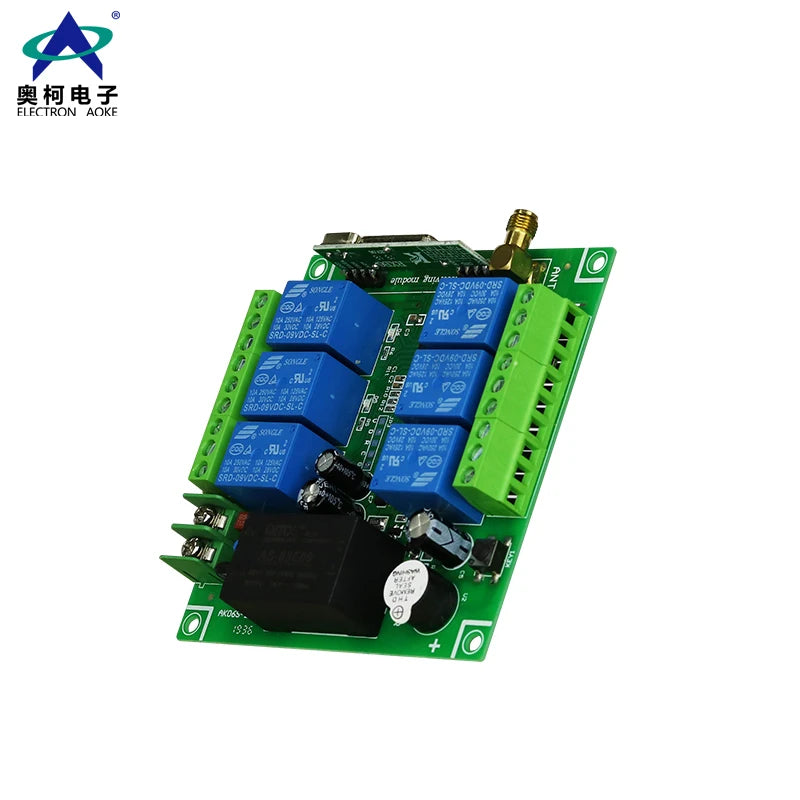

Long Distance 110V 220V 6CH Wireless Remote Control Switch Lamps Pump Motor Controller Six-way Switch 2pcs Transmitter Receiver

Long Distance  220V 6CH Wireless remote control switch lamps pump motor controller six-way switch Transmitter Receiver

Mainly used in electric door, window, lifting equipment, gateway, elevator, industrial control and security industry etc..

the main technical indicators

1, working voltage: AC100V-AC265V

2, working temperature:-40℃ - +80℃

3, the receiving sensitivity is more than -105dBm

4, working frequency: 315MHz/433MHz

5, output voltage: AC, DC optional

6, output current: less than 3A

2. The way of output

A. 1-6CH Momentary-----Press Transmitter Button “1”to learn

B. 1-6CH Latched----- Press Transmitter Button “2” to learn

C. 1-6CH Toggle-- -- Press Transmitter Button “3” to learn

D.1-3CH Momentary, 4-6CH Toggle------Press Transmitter Button “4” to learn

E.1-3CH Momentary, 4-6CH Latched------ Press Transmitter Button “5” to learn

F.1-3CH Latched, 4-6CH Toggle------- Press Transmitter Button “6” to learn

Momentary------------Press the Transmitter button 1, the receiver relay 1th is ON, release button 1; the receiver relay 1th is OFF, the same as 2/3/4/5/6 are independent.

Toggle---------------Press transmitter button 1 for 1 time, the receiver relay 1th is ON, press button 1 again, the receiver relay 1th is OFF, the same 2/3/4/5/6 are independent.

 Latched------------------

Press transmitter button 1, the receiver relay 1th is ON, the relay 2/3/4/5/6 is OFF.

Press transmitter button 2, the receiver relay 2th is ON, the relay 1/3/4/5/6 is OFF.

Press transmitter button 3, the receiver relay 3th is ON, the relay 1/2/4/5/6 is OFF

Press transmitter button 4, the receiver relay 4th is ON, the relay 1/2/3/5/6 is OFF.

 …………….

It also mean .Latched only can keep 1CH ON .and it will often have 1CH is ON.

3. Learning way and steps

1. Press the learning Button of the receiver and buzzer keep tweeting, indicate enter into the status of learning

2. Press the Relative button of the transmitter to learn Relative output way, indicate learning success as the buzzer tweet “Be Be Be” 3 sounds ,and then you press the transmitter Button you can hear the relay act sound. The receiver automatically exits learning state if you do nothing in 32 seconds.

4. Delete memory message (Must clear the code before you learn different button )

Keep pressing the learning Button of the receiver, the buzzer buzzer tweet and “Be Be Be Be  “ (please do not wait for it Be for 6 sounds) then release the button , indicate success to delete the memory message.

learning methods and steps

1, press the receiver learning key - the buzzer sound  , Enter the learning state,

2, Press the Relative button of the transmitter to learn Relative output way, the buzzer stops sound, It means learning success

clear code

Long press the receiver button until the buzzer sound to stop, said the stored information has been successfully cleared

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

package included:

1 * receiver

2 * transmitter (included battery)
