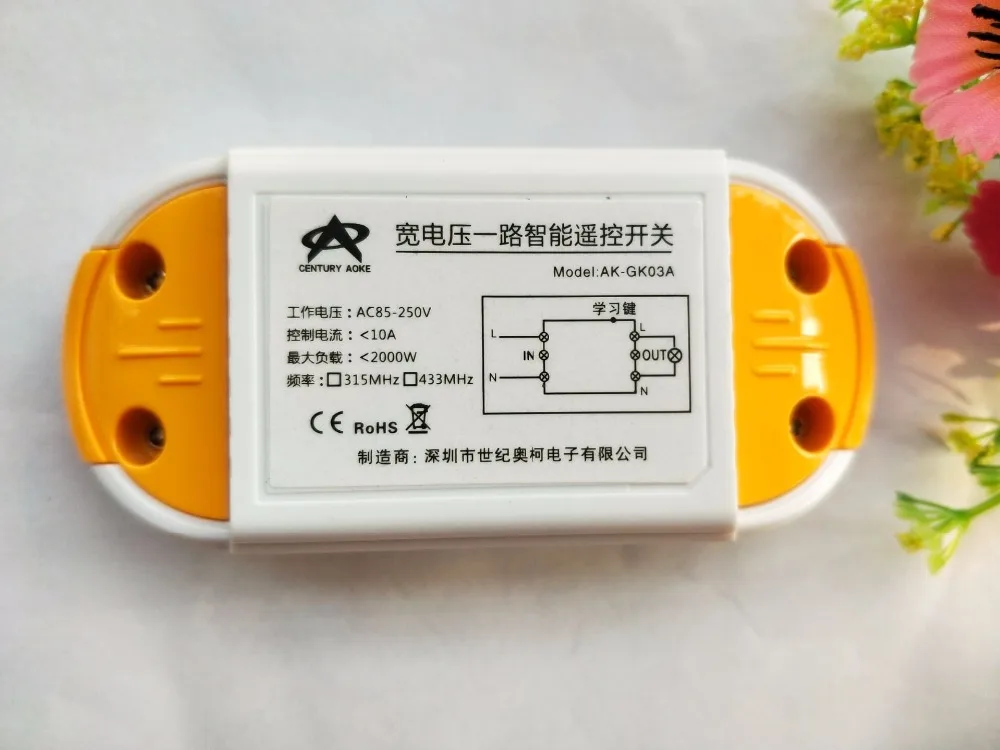

AC220V 110V 85V 1CH 10A RF Wireless Remote Control Switch System teleswitch relay Receiver door bell system Smart Home Switch

Wide voltage multi-function single-channel high-power remote control switch with 10A relay, can load a higher power appliances; learning microcontroller decoding, can learn more than one remote control, and each remote control all the keys can learn; can be a remote control Multiple switches, but also a number of remote control to control a switch, simple and flexible combination of any combination of flexible; output through the jump switch, jog, self-locking, interlock can be arbitrarily selected, easy to use, suitable for a variety of areas use;

Mainly used in lighting, electric doors, windows, lifting equipment, motor control, pumps, lifts control and security industry and other fields.

Second, the technical parameters

Operating voltage: AC85-250V / DC15-120V

Operating frequency: 315MHz / 433 MHz

Standby current: 10mA

Maximum load: 1000 watts

Work: self-locking, jogging, interlocking

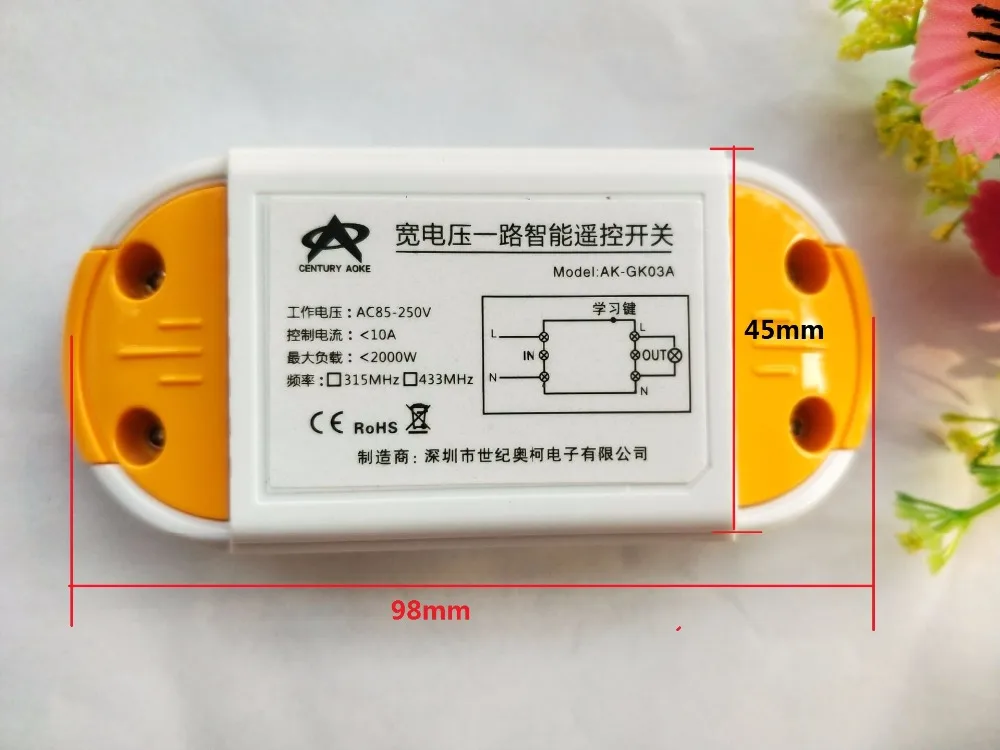

Shell size: 98 * 44 * 27.5mm

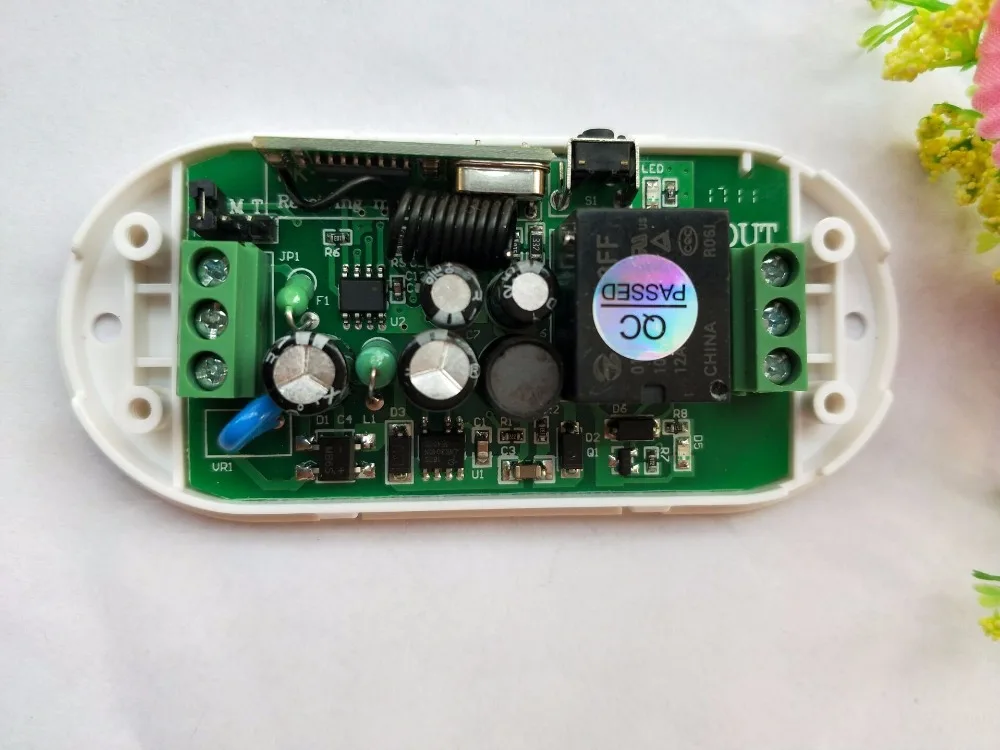

PCB size; 67 * 38 * 16.5mm

Third, learning methods

Press the learning key, the indicator light off (that has entered the learning state), release the learning button, press the remote control any key, the indicator light four times after the light that learning success.

★ Note: The controller can learn fixed code / learning code and other 20 different coding, any button remote control, in turn, will be removed in advance to learn the first remote control.

Fourth, the removal method

Press and hold the learning key for about 4 seconds. The indicator light is turned off to restore long.

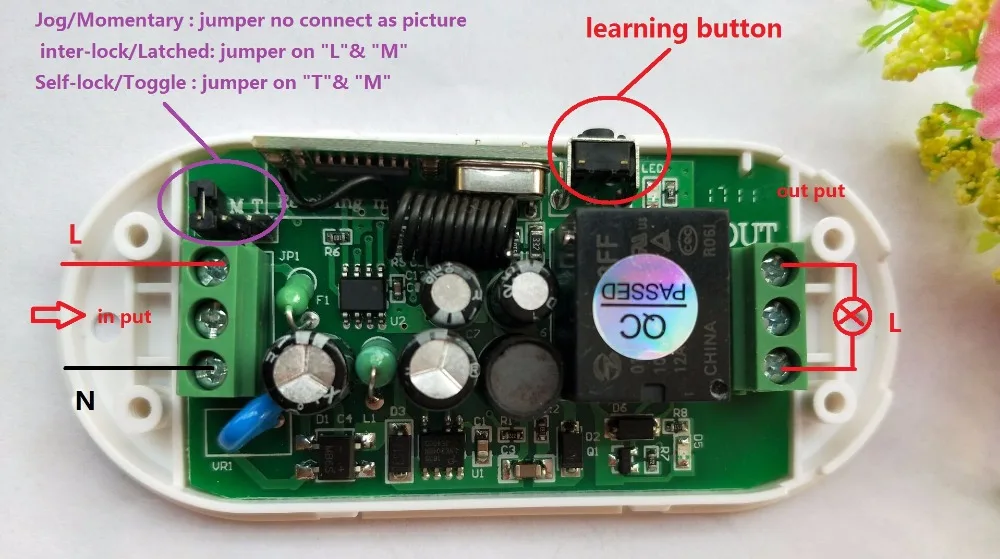

Fifth, work mode switch

Through short circuit to shorten the different places to switch work.

1, jog - short circuit to vacant

2, self-locking - short circuit to take T.M

3, interlock - short circuit to take M.L

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

Package Included:

A:

1 x Receiver(with cover)

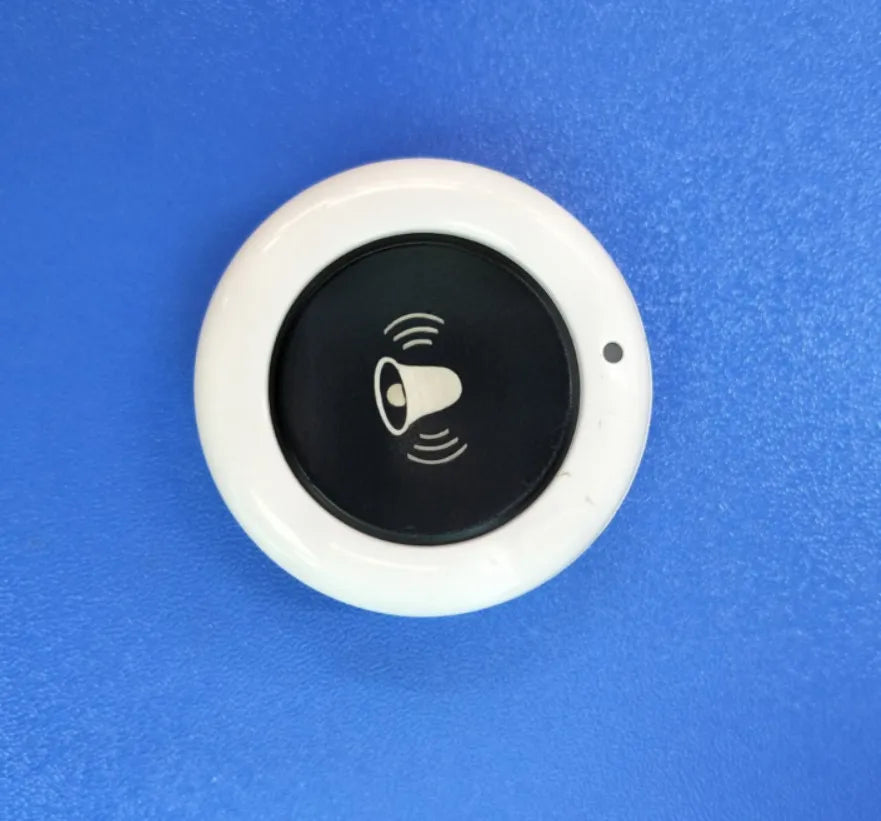

1 x Transmitter(with battery)

B:

1 x Receiver(with cover)

2 x Transmitter(with battery)

C:

1 x Receiver(with cover)

4 x Transmitter(with battery)
