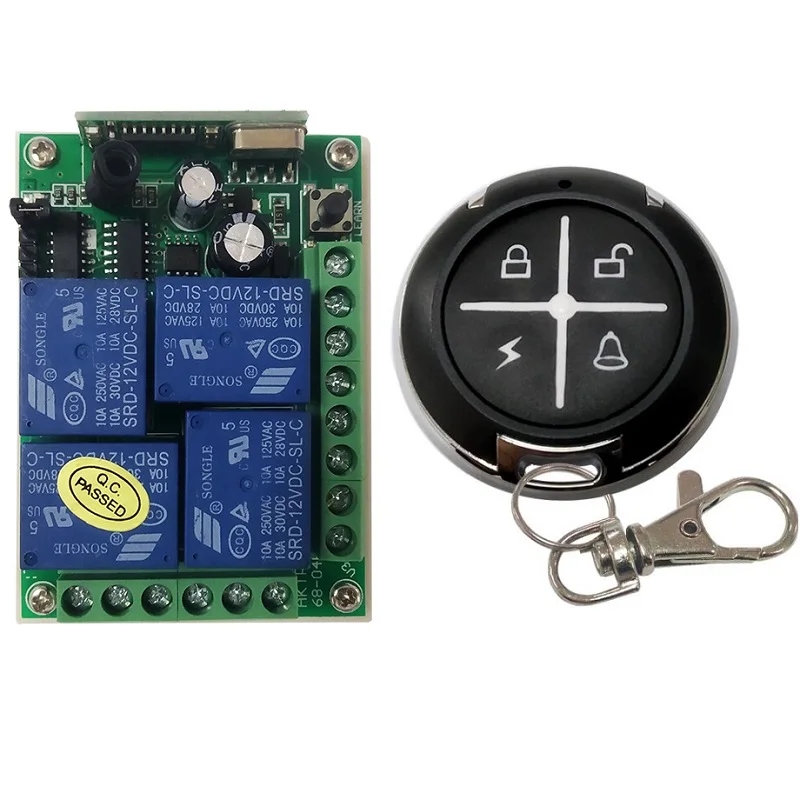

4CH 315/433mhz DC 12V 10A 4 channel RF switch Wireless Remote Control switch Electric car/motorcycle/headlamp horn transmitter

$19.34 USD

~~$15.48 USD~~ $19.34 USD

Sale Sold out

Quantity

1.Working Voltage: DC12V10%
2.Current:Standby less than 10mA,Working less than 128mA
3.Working Temperature: -10\'C+60\'C
4.Receiver Frequency: 315MHz/433.92MHZ
5.Receiving Sensitivity: -105dB
6.Output State: Switching Value
7.Max Load:10A Relay, Resistive load less than 8A,Inductive load less than 3A
8.Receiver Board Size:70*50*18mm
9.Case Size:75 * 55 * 30mm
Encoding Type: Learning Code
Add transmitter by the Learning Button on the receiver

Output State: It is adjusted by the Jumper on the Receiver Board,

Momentary-----Jumper on 1 Pin or Take away the Jumper

Toggle--------Jumper on "3&4"

Latched-------Jumper on "1&2"

Momentary-----Press the transmitter button A,the receiver relay A is ON; Release button A ,The receiver relay A is OFF ,The same as B/C/D

Toggle--------Press the transmitter button A For 1 time ,the receiver relay A is ON; Press button A again,The receiver relay A is OFF ,The same as B/C/D

Latched------

Press transmitter button A,the receiver relay A is ON,the relay B/C/D is OFF
Press transmitter button B,the receiver relay B is ON,the relay A/C/D is OFF
Press transmitter button C,the receiver relay C is ON,the relay A/B/D is OFF
Press transmitter button D,the receiver relay D is ON,the relay A/B/C is OFF

It mean ,Latched only can keep 1CH ON,and it will ofen have 1CH is ON

Learning Method:

Input DC12V Power for the receiver,press the learning button ,Green LED indicator OFF,Then press transmitter ,the LED indicator flash fast,It mean learning successfully.

Clearing Code:

Keeping press the learning button 8 seconds until the LED indicator ON, It mean the code have been cleared successfully.

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency
