Sucker Antenna 3000m AC110 220V 12CH Radio Controller RF Wireless Remote Control Overhead Travelling Crane System Digital keys

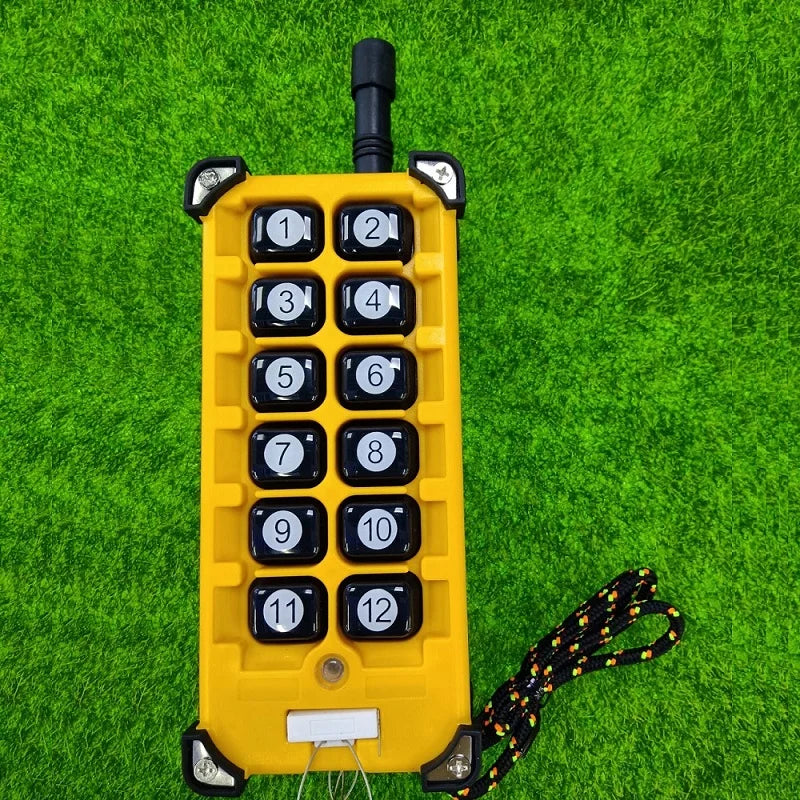

1.Transmitter

Mainly used in electric door, window, lifting equipment, gateway, elevator, industrial control and security industry etc..

the main technical indicators

1, working voltage: AC100V-AC265V

2, working temperature:-40℃ - +80℃

3, the receiving sensitivity is more than -105dBm

4, working frequency: 315/433MHz (default 315mhz ，if you need 433mhz leave message please)

5, output voltage: AC, DC optional

6, output current: less than 3A

2. The way ofoutput

A. 1-12CH Momentary-----Press Transmitter Button “1”to learn

B. 1-12CH Latched----- Press Transmitter Button “2” to learn

C. 1-12CH Toggle-- -- Press Transmitter Button “3” to learn

D. 1-6CH Momentary, 7-12CHLatched------Press Transmitter Button “4” to learn

E. 1-6CH Momentary, 7-12CH Toggle------ Press Transmitter Button “5” to learn

F. 1-4CH Momentary, 5-12CH Latched------- Press Transmitter Button “6” to learn

G. 1-4CHMomentary, 5-8CH Latched, 9-12CH Toggle------- Press Transmitter Button “7” to learn

H. 1-4CH Toggle, 5-12CH Latched------- Press Transmitter Button “8” to learn

Momentary------------Press the Transmitter button 1, the receiver relay 1th is ON, release button 1; the receiver relay 1th is OFF, the same as 2/3/4/5/6---12 are independent.

Toggle---------------Press transmitter button 1 for 1 time, the receiver relay 1th is ON, press button 1 again, the receiver relay 1th is OFF, the same 2/3/4/5/6---12 are independent.

Latched------------------

Press transmitter button 1, the receiver relay 1th is ON, the relay 2/3/4/5/6 ---12 is OFF.

Press transmitter button 2, the receiver relay 2th is ON, the relay 1/3/4/5/6----12 is OFF.

Press transmitter button 3, the receiver relay 3th is ON, the relay 1/2/4/5/6----12 is OFF

Press transmitter button 4, the receiver relay 4th is ON, the relay 1/2/3/5/6----12 is OFF.

…………….

It also mean .Latched only can keep 1CH ON .and it will often have 1CH is ON.

3. Learning way and steps

1. Press the learning Button of the receiver and buzzer keep tweeting, indicate enter into the status of learning

2. Press the Relative button of the transmitter to learn Relative output way, indicate learning success as the buzzer tweet “Be Be Be” 3 sounds ,and then you press the transmitter Button you can hear the relay act sound. The receiver automatically exits learning state if you do nothing in 32 seconds.

4. Delete memory message

Keep pressing the learning Button of the receiver, the buzzer buzzer tweet and “Be Be Be Be  “ then release the button , indicate success to delete the memory message.
