3000m DC12V 24V 12CH Radio Controller RF Wireless Remote Control Overhead travelling crane System Receiver Numer button Remote
3000m DC12V 24V 12CH Radio Controller RF Wireless Remote Control Overhead travelling crane System Receiver Numer button Remote
Regular price
$21.85 USD
Regular price
$21.85 USD
Sale price
$21.85 USD
Unit price
per
Couldn't load pickup availability
Note: 433mhz and 315 mhz are available ,433mhz will be sent out if there is no demand on frequency
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

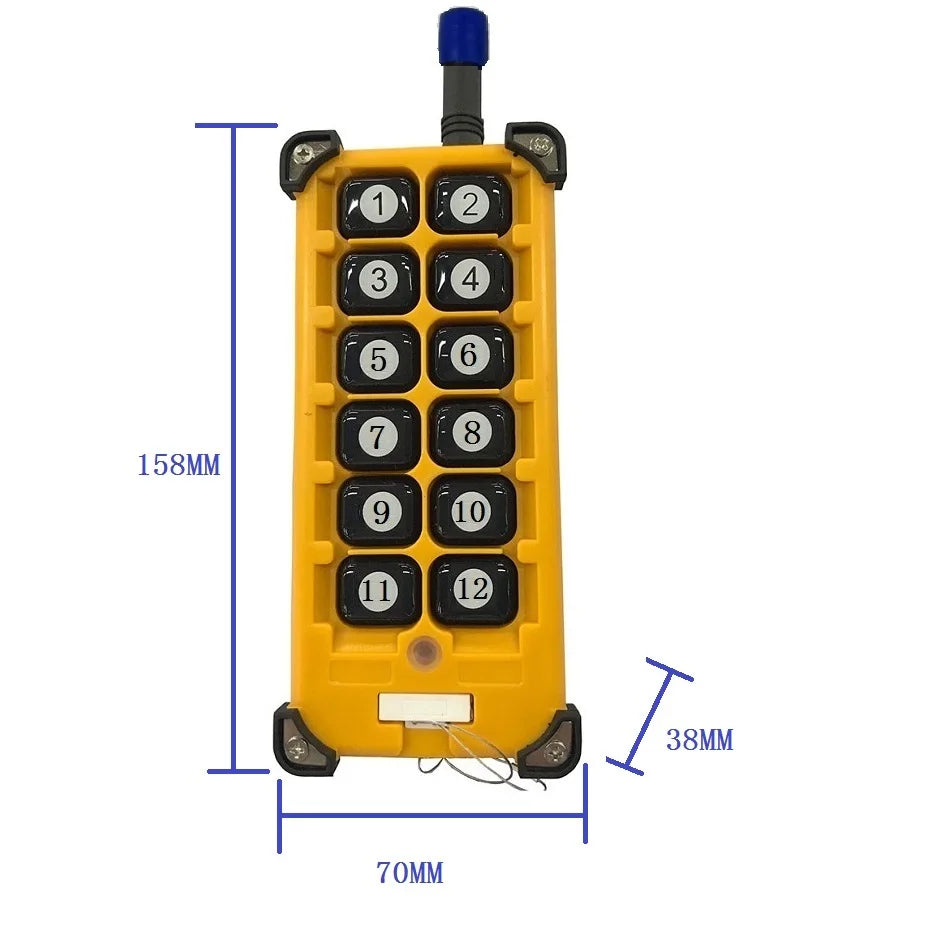

1.Transmitter
Channel:12CH
Remote Control Distance:200-3000m( Ideal Distance WITHOUT Any Block and Signal Interfere,Could Rise or Fall 10%-90% in Real Situation )
Encode:fixed code2264
Frequency:315MHZ/433MHZ
Size:70*158*38m
Power Supply:DC6V( 4 section 5 battery Note that the batteries do not match )
2.Receiver
Decode: Learning Code
Control Type: Toggle, Momentary, Latched
Power Supply (Operating Voltage): DC 12V 24V
Relay: 20A/125V AC, 20A/14V DC
Work Voltage Range of Relay: AC 110-240V or DC 0-28V
State current: ≤6 mA
Sensitivity:-105 dBm
Operating Temperature:-20‘C - 70’C
Size:97 X 77 X 17 mm
Frequency:315 433.92
Function(Original Setting is Momentary , Change it by yourself.)
1).Toggle/Self-lock :Press 1 button==>on,press the same button again==>off
2) Momentary/Jog:Press and hold==> on, release==>off
3)Latched/inter-lock:press 1 button ==>on,press other button==>off
3.Clear Code and Learn Code
1) Learn
press the learning button 1 time,the learning LED turns on,then press the transmitter key to learn.the learning led flashs and turns off. means learn sucessfully.
2) Clear
press the learning button for 5 seconds,the learning LED flashs and turns off, that means the code has been cleared.
Note: 433mhz and 315 mhz are available ,433mhz will be sent out if there is no demand on frequency
pacote inclued:
A:
1x Transmitter(No batteries included)
B:
1 x Receiver(with cover)
1x Transmitter(No batteries included)
C:
1x Receiver(with cover)
2x Transmitter(No batteries included)
