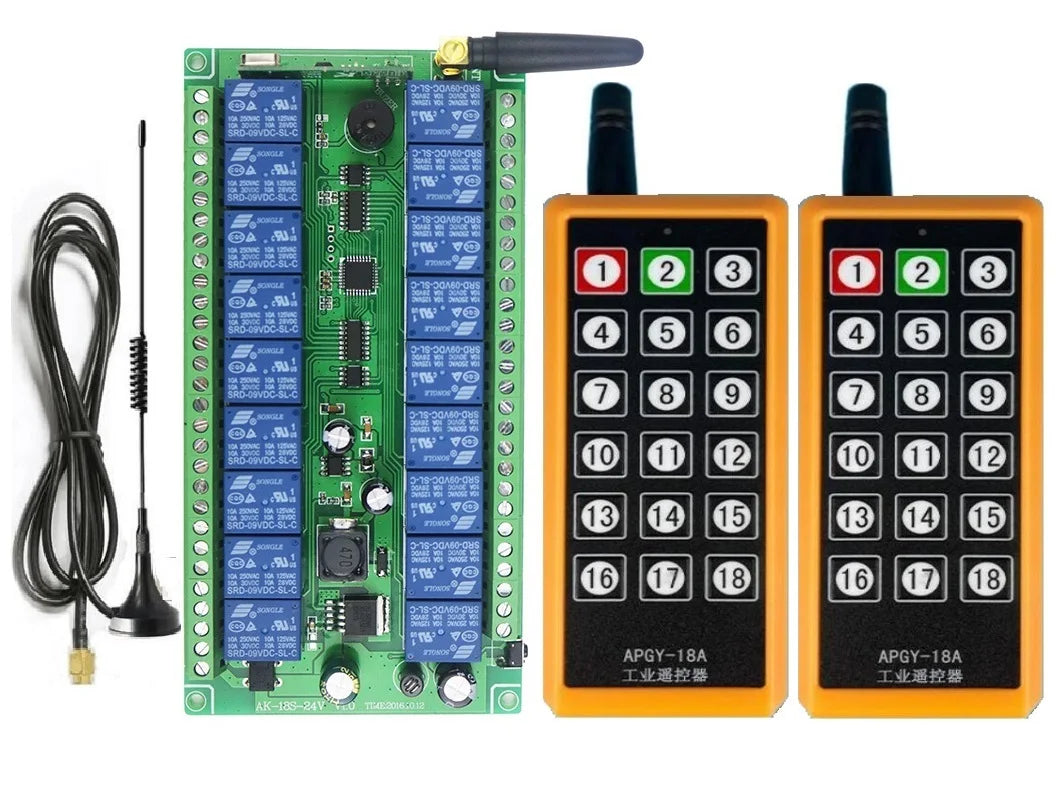

1000M Universal 315/433mhz DC 12V 24V 18CH RF Wireless Radio Remote Control Switch System Receiver Transmitter Lighting Power on

DC12V 24V Wide voltage 18 CH 18CH RF Wireless Remote Control Switch System, Transmitter + Receiver,315/433.92 MHZ + antenna

Receiver

Working Voltage :  DC 12V 24V

Quiescent Current : less than 8mA

Working Temperature: -20'C- +70'C

Receiving sensitivity: more than -105dBm

Working Frequency: 315MHZ/433MHZ

Output Type: Input DC12V 24V Output 0V Switching Value use Relay NO COM NC

Relay: 10A Relay have better load less than 5A

Working Mode:

1--------18CH Toggle  use " 1 " Button to Learn

2--------18CH Momentary use " 2" Button to Learn

3--------18CH Latched use "3" Button to Learn

4--------1-9CH Toggle,10-18CH Momentary use "4 " Button to Learn

5--------1CH Toggle , 2-18CH Momentary use " 5 " Button to Learn

Learning Code:

Input DC12V 24V for the Receiver, Press the Learning Button on the Receiver ,LED Indicator ON ,Release it, then press the relative Transmitter Button, Receiver LED Indicator flash for 1 time, it mean learning is successful.

Clearing Code:

Input DC12V 24V for the Receiver, press the learning button on the receiver and hold for about 8s until the Receiver LED indicator OFF, it mean the code have been cleared.

the Receiver can keep 30 pcs different code transmitter

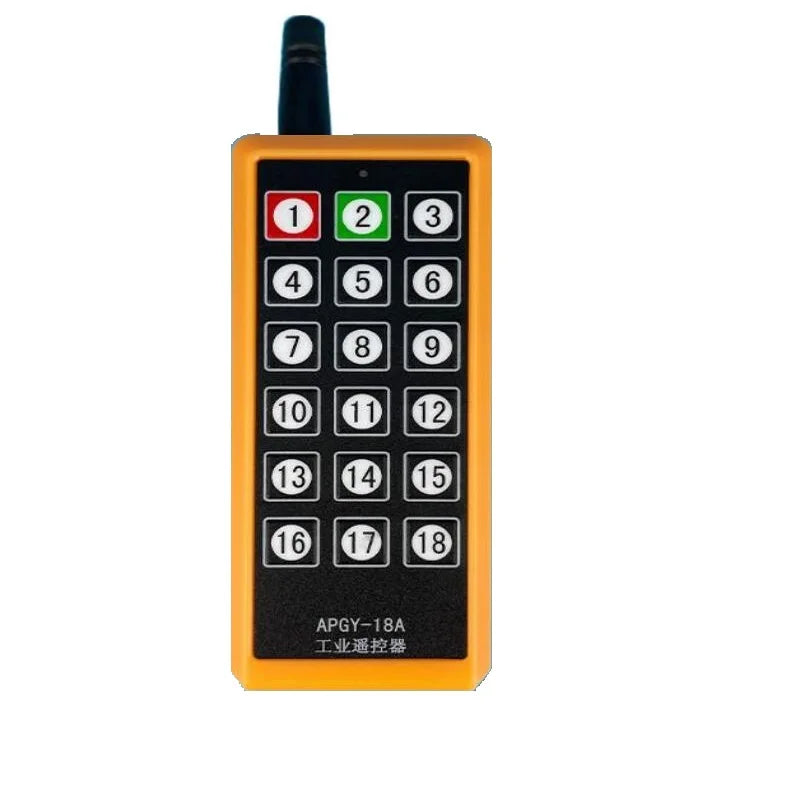

Transmitter

Encode:fixed code2264

Frequency:315MHZ/433MHZ

Size:185*65*27m

Power Supply:DC6V(Note 4 pcs AAA batteries not transported)

package included
