DC12V 24V 18CH RF Wireless Remote Control Light Motor Switch System Transmitter+Receiver/lamp/Garage Door

Note:  433mhz and 315 mhz are available ,433mhz will be sent out if there is no demand on frequency, We have three colors of remote control can choose, please give us order message! I didn't get the message. We sent it randomly

Receiver

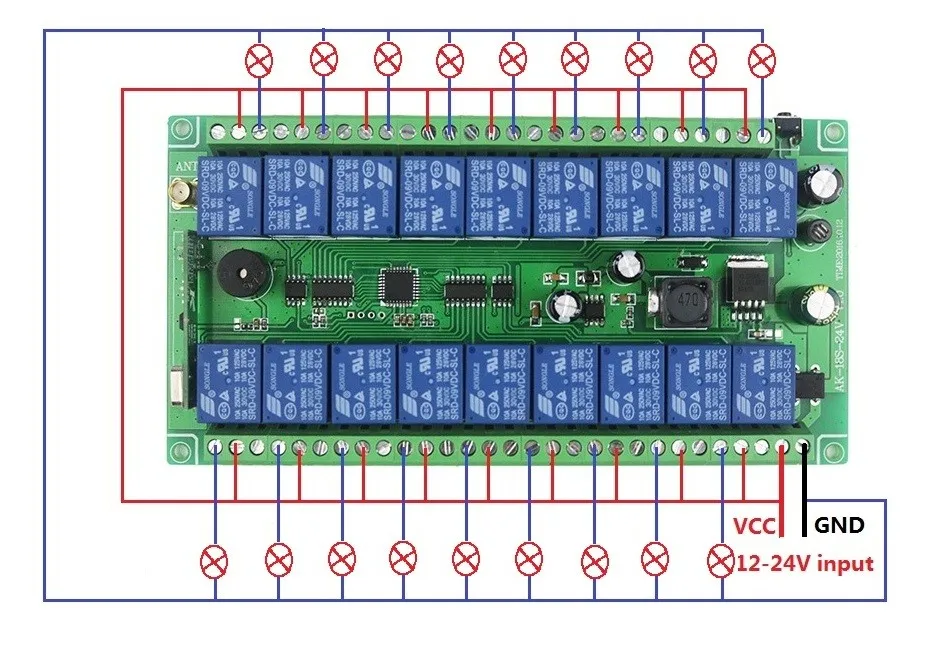

Working Voltage :  DC 12V 24V

Quiescent Current : less than 8mA

Working Temperature: -20'C- +70'C

Receiving sensitivity: more than -105dBm

Working Frequency: 315MHZ

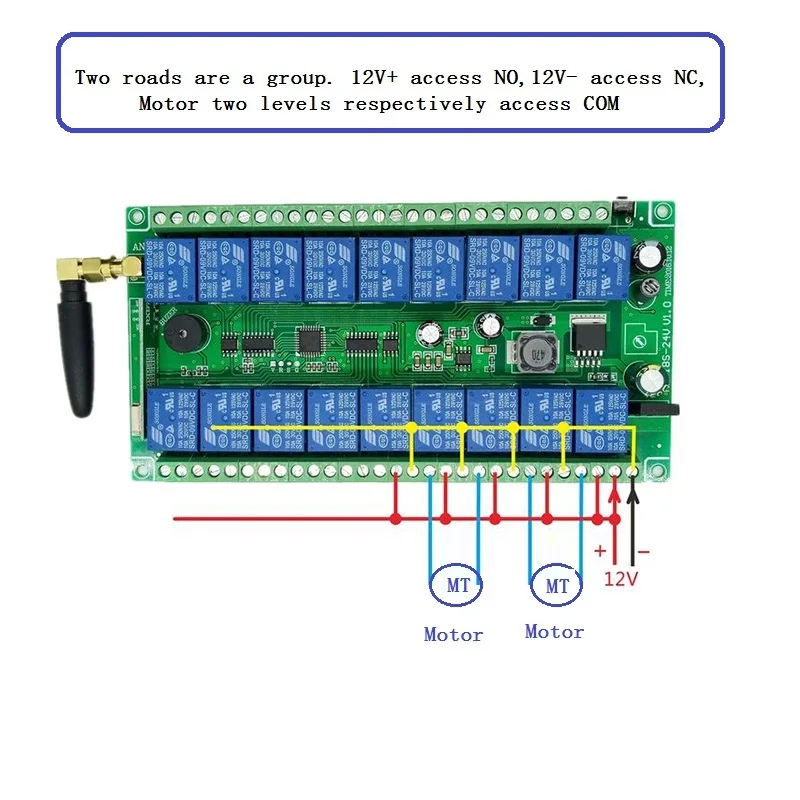

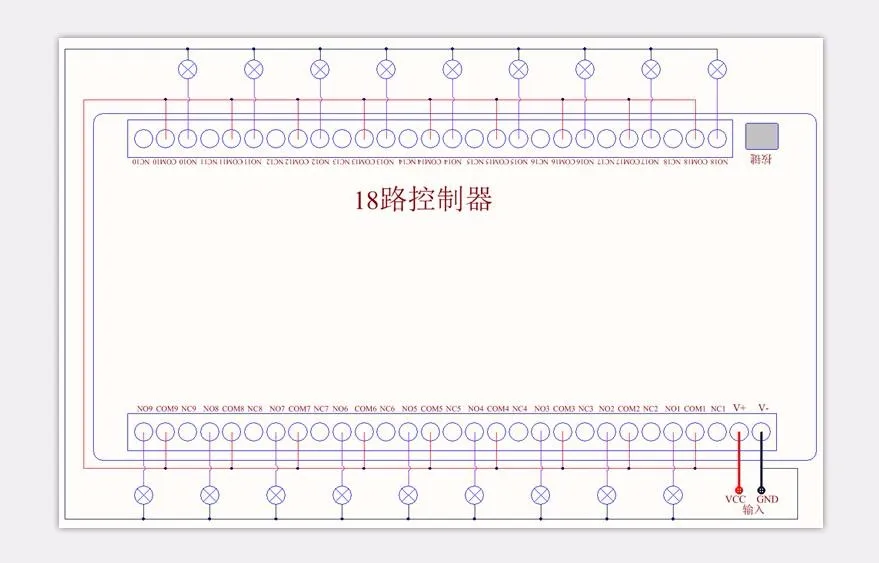

Output Type: Input DC12V24V Output 0V Switching Value use Relay NO COM NC

Relay: 10A Relay have better load less than 5A

Working Mode:

1--------18CH Toggle  use " 1 " Button to Learn

2--------18CH Momentary use " 2" Button to Learn

3--------18CH Latched use "3" Button to Learn

4--------1-9CH Toggle,10-18CH Momentary use "4 " Button to Learn

5--------1CH Toggle , 2-18CH Momentary use " 5 " Button to Learn

Learning Code:

Input DC12V 24V for the Receiver, Press the Learning Button on the Receiver ,LED Indicator ON ,Release it, then press the relative Transmitter Button, Receiver LED Indicator flash for 1 time, it mean learning is successful.

Clearing Code:

Input DC12V 24V for the Receiver, press the learning button on the receiver and hold for about 8s until the Receiver LED indicator OFF, it mean the code have been cleared.

the Receiver can keep 30 pcs different code transmitter

Transmitter

Working voltage: AAA 1.5V Battery  2pcs

Working Frequency:315/433MHZ

Transmitting Power:13mW

Note:  433mhz and 315 mhz are available ,433mhz will be sent out if there is no demand on frequency

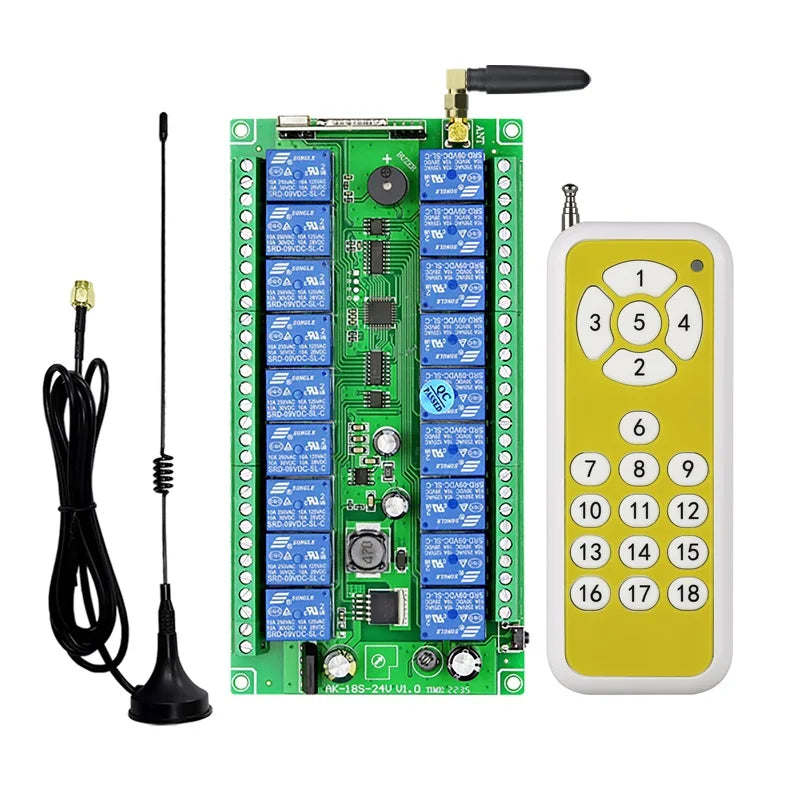

package included

A:

1x Receiver(with cover)

1x Transmitter(not with battery)

1XSucker antenna

B:

1x Receiver(with cover)

2x Transmitter(not with battery)

1XSucker antenna

1x Receiver(with cover)

3x Transmitter(not with battery)

1XSucker antenna

1x Receiver(with cover)

4x Transmitter(not with battery)

1XSucker antenna

E

1x Transmitter(not with battery)
