2000m DC12V 24V 21CH 433MHz Relay RF Wireless Remote Control Switch Receiver Transmitter Suction Antenna For LED Light or Motor
2000m DC12V 24V 21CH 433MHz Relay RF Wireless Remote Control Switch Receiver Transmitter Suction Antenna For LED Light or Motor
Couldn't load pickup availability
Note: 433mhz and 315 mhz are available ,433mhz will be sent out if there is no demand on frequency
1.Transmitter
Channel:21CH
Remote Control Distance:100-2000m( Ideal Distance WITHOUT Any Block and Signal Interfere,Could Rise or Fall 10%-90% in Real Situation )
Encode:fixed code2264
Frequency:315MHZ/433MHZ
Size:185*65*27m
Power Supply:DC6V(4 section 7 batteryNote that the batteries do not match)
2.Receiver
1.Working Voltage: DC12V /24V
2, static current: ≤7mA
3, working temperature: -20℃ - +70℃
4, receiving sensitivity: ≥ 105dBm
5, working frequency: 315MHz to 433MHz
6, control voltage: AC, DC optional
7, output current: ≤5A
8. Size: 164mm X 89mm X 19mm
9. Shell size: 186mm x 93mm X 33mm
2.The way ofoutput
A. 1-21CH Toggle-- -- Press Transmitter Button “1” to learn
B. 1-21CH Momentary-----Press Transmitter Button “2”to learn
C. 1-21CH Latched----- Press Transmitter Button “3” to learn
D. 1-9CH Toggle, 10-21CH Momentary------Press Transmitter Button “4” to learn
E. 1CH Toggle, 2-21CH Momentary------Press Transmitter Button “5” to learn
F. 1CH 2CH Toggle, 3-21CH Momentary------Press Transmitter Button “6” to learn
G. 1CH 2CHLatched, 3-21CH Momentary------Press Transmitter Button “7” to learn
H. 1- 9CHLatched, 10-21CH Momentary------Press Transmitter Button “8” to learn
Momentary------------Press the Transmitter button 1, the receiver relay 1th is ON, release button 1;the receiver relay 1th is OFF, the same as 2/3/4/5/6---21 are independent.
Toggle---------------Press transmitter button 1 for 1 time, the receiver relay 1th is ON, press button 1 again, the receiver relay 1th is OFF, the same 2/3/4/5/6---21 are independent.
Latched------------------
Press transmitter button 1, the receiver relay 1th is ON, the relay 2/3/4/5/6 ---21 is OFF.
Press transmitter button 2, the receiver relay 2th is ON, the relay 1/3/4/5/6----21 is OFF.
Press transmitter button 3, the receiver relay 3th is ON, the relay 1/2/4/5/6----21 is OFF
Press transmitter button 4, the receiver relay 4th is ON, the relay 1/2/3/5/6----21 is OFF.
…………….
It also mean .Latched only can keep 1CH ON .and it will often have 1CH is ON.
Note: if you learn good receiver want to change to other function, please will study receiver again after the qing code to code.
Learning Code:
Input DC12V 24V for the Receiver, Press the Learning Button on the Receiver ,LED Indicator ON ,Release it, then press the relative Transmitter Button, Receiver LED Indicator flash for 1 time, it mean learning is successful.
Clearing Code:
Input DC12V 24V for the Receiver, press the learning button on the receiver and hold for about 8s until the Receiver LED indicator OFF, it mean the code have been cleared.
the Receiver can keep 30 pcs different code transmitter
Encode:fixed code2264
Frequency:315MHZ/433MHZ
Size:185*65*27m
Power Supply:DC6V(Note 4 AAA batteries not transported)
Output Status: Jog / interlock / self-locking
This Wireless Switches fully uses the resources of 2262 chip, four parallel data yards
This Wireless Remote Control Switch is very suitable for the kind of the occasion which needs a little control more, such as street light control
Output working way:
1. Self-lock ---connect the s1 with the cutting out cap.
2. Jog---the cutting-out cap is non-occupation, S1 and S2 do not connect either.
3.inter-lock---- Connect the S2 with the Cutting out cap,
Jog---- press one button is ON . loosen your finger on the same button is OFF .need one channel switch and one buttons remote control )
buttons remote control
Learning and remove method.
1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully .
2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control
3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully .
Note: 433mhz and 315 mhz are available ,433mhz will be sent out if there is no demand on frequency
3.Package Included:
A:

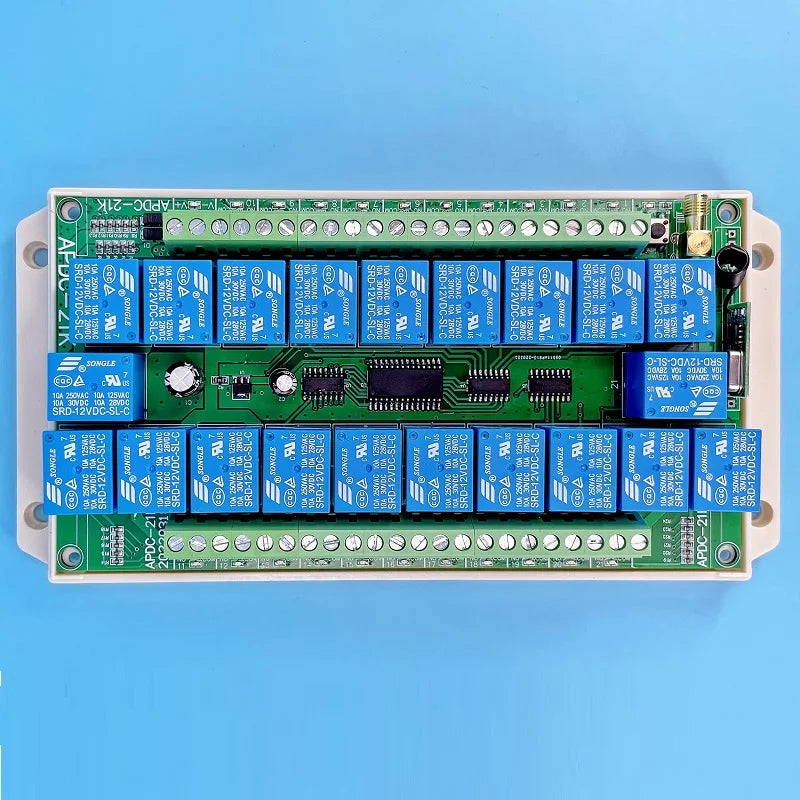

1x Receiver(with cover)
2 x Transmitter（battery not included）
1 x Transmitter（battery not included）
