Receiver (switch)

Channel: 1CH

MAX Working Voltage :220V / 380V

Max load power:3000W

Max load current : 30A  (have better lower than 70%)

Working Frequency :315 MHZ or 433 MHZ (optional)  315/433MHz can be choose, If there is no requirement. we will send 315 MHZ -------Please order message me

Working temperature : -10'C - +60'C

Output way : Jog .Inter-lock .Self -lockis Adjustable

Code type :Learning code

size :110*55*45mm

working/output way

Jog/Non-Latched:press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

Self -lock/Self-Latched:press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control )

Inter-lock /Latched :press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control  )

Learning  method

Input AC 220V / 380V for the Receiver. press the Learning Button until the Led indicator ON.  Then press transmitter , the Led indicator flash fast, it mean learning successfully.

Clearing Code:

Keeping press the learning Button on the receiver until the Led indicator ON and flash fast, it mean the code have been cleared successfully.

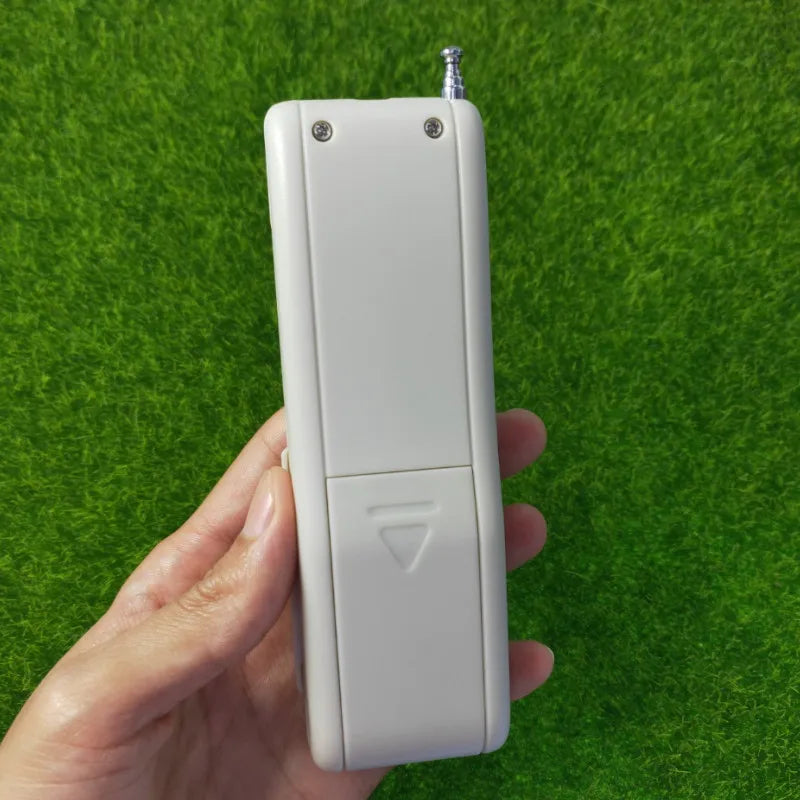

Remote control (transmitter)

Operating Voltage:DC12V

Operating Current:30MA

Operating Frequency:315/433MHz

Frequency Distance:100M-1000M(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-50% with the block and signal interference ).

package included:

A:1*receiver

    1* transmitter(included battery)

B:1*receiver

    1* transmitter(included battery)

1*sucker antenna

C: 1* transmitter(included battery)
