New AC220V AC380V Industrial Remote control electric hoist navigation crane wireless remote control Switch Controller

My dear friends, please note: There are AC 220V, 380V can choose ，order must see clearly

1. Overview

8-way crane wireless controller has the characteristics of ultra-high stability and ultra-high sensitivity of data transmission, high data transmission rate, free from motor interference, etc., the program adopts scrollcode encryption processing, and the confidentiality is strong. When the controller works, each independent output, does not interfere with each other, easy operation, clear logic. Suitable for use in industrial control scenarios.

2. Product features

(1) Operating frequency: 409-510mhz;

(2) Working mode: point-moving mode;

(3) Output mode; Terminal block;

(4) Demodulation mode: FSK;

(5) Working voltage:AC220V/AC380V

(6) Control mode: 8-way crane industrial remote control;

(7) The number of remote controls that can be paired: 1 (that is, a controller can only be paired with one remote control);

3. Function description

3.1 Code operation

Press the learning key of the controller to enter the learning state. The learning indicator of the controller is steady on, and then long press the "Stop + West key" of the remote control to send the code alignment signal. The learning indicator of the controller blinks three times to indicate that the learning succeeds.

3.2 Working Mode Description

Click mode: Press the remote control button, the relay is drawn, release the button and the relay is disconnected. The upper, lower, east, west, south and north buttons of the remote control are in the point working mode.

Click mode: Press the remote control stop button once to lock the controller output. Press the open button of the remote control once to start the relay output, and then press the open button after starting the relay output to remote control the eighth relay output of the controller.

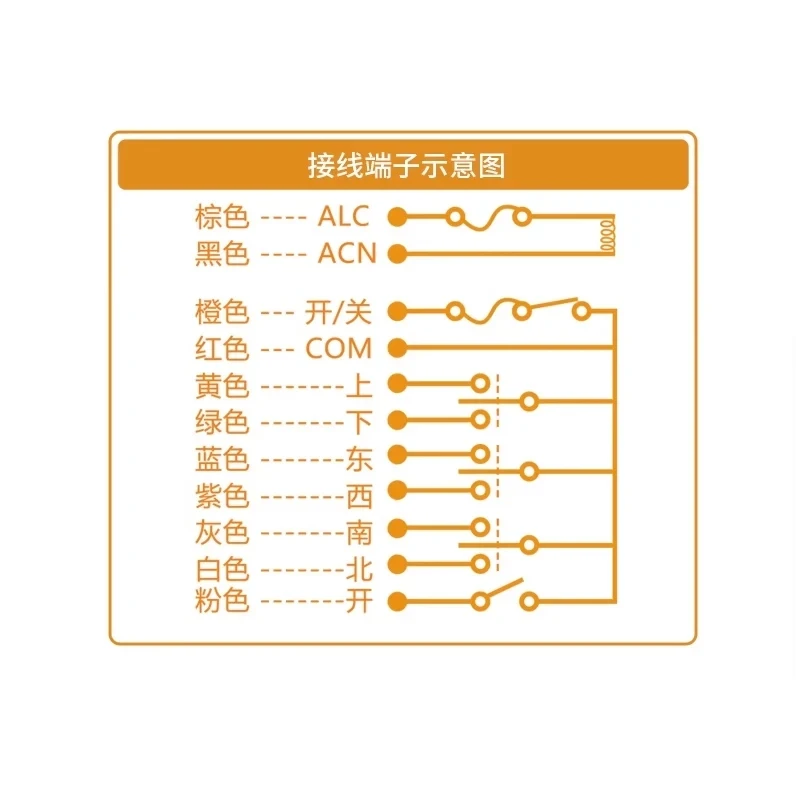

3.3 Relay control instructions

1. When the controller receives the upper, lower, east, west, south, north key signal of the remote control, open the relay on the corresponding controller board.

2. The relay "up and down" is a group, "east and west" is a group, and "north and south" is a group, and each group of relays will not be opened at the same time. If a simultaneous open signal is received within the same group, the group of relays is disconnected at the same time.

3.4 Code Clearing Operations

Long press the controller code key > 5 seconds, the controller indicator light from steady on to flash 5 times to indicate that the code is clear, clear all the stored remote control code, all the remote control can not be controlled

4. Precautions

(1) The power supply voltage cannot exceed the operating voltage.

(2) Keep out of reach of children.

(3) In an environment with relatively large wireless interference, the control distance may be reduced.

(4) Do not use in a humid environment, otherwise it may cause damage to the controller.

(5) High-pressure equipment work, non-professional personnel are prohibited to disassemble.

package included:

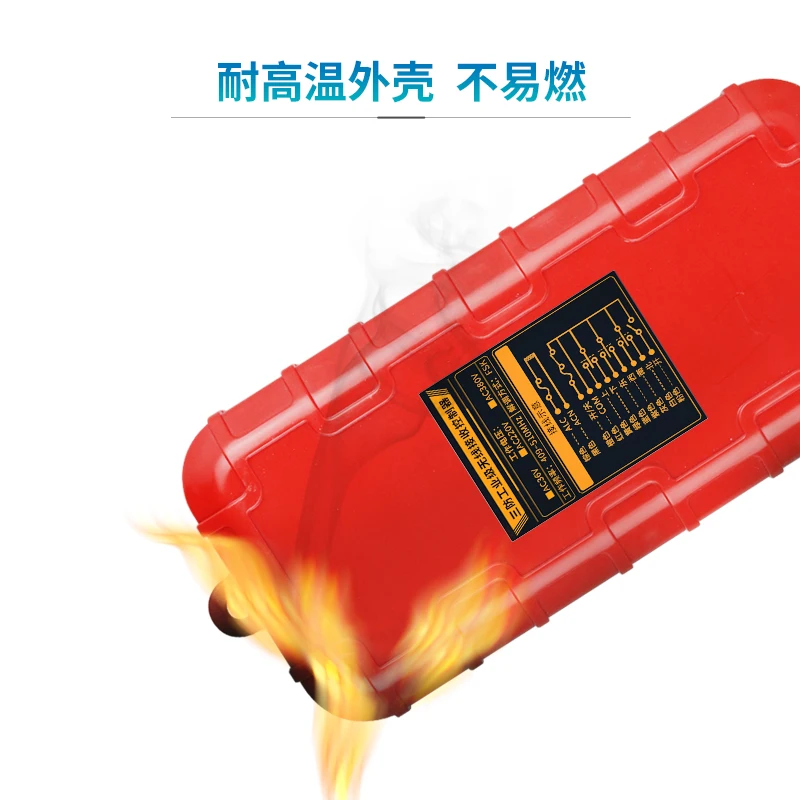

1*receiver

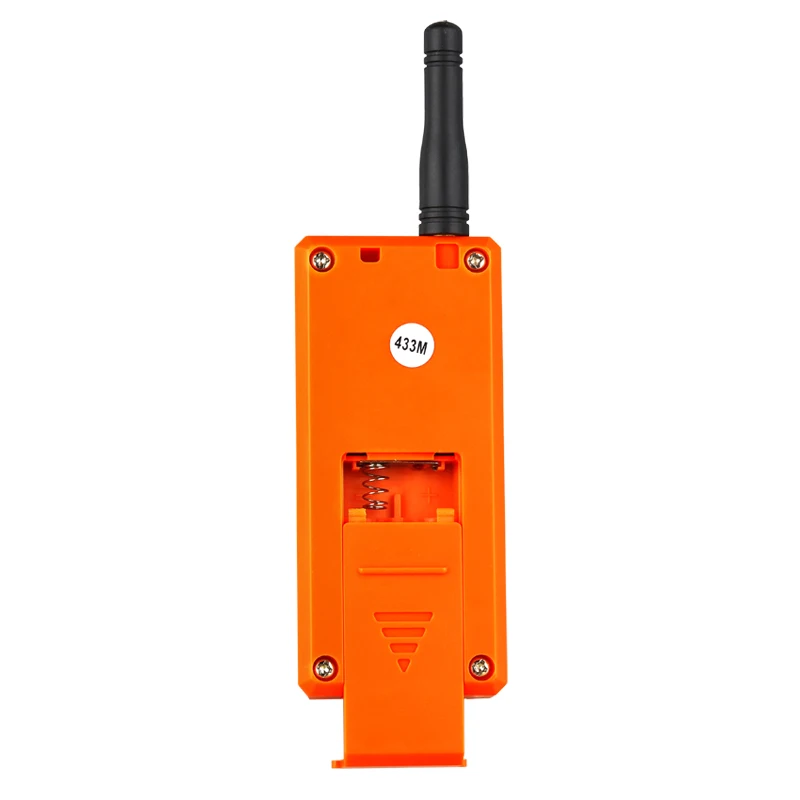

1* transmitter
