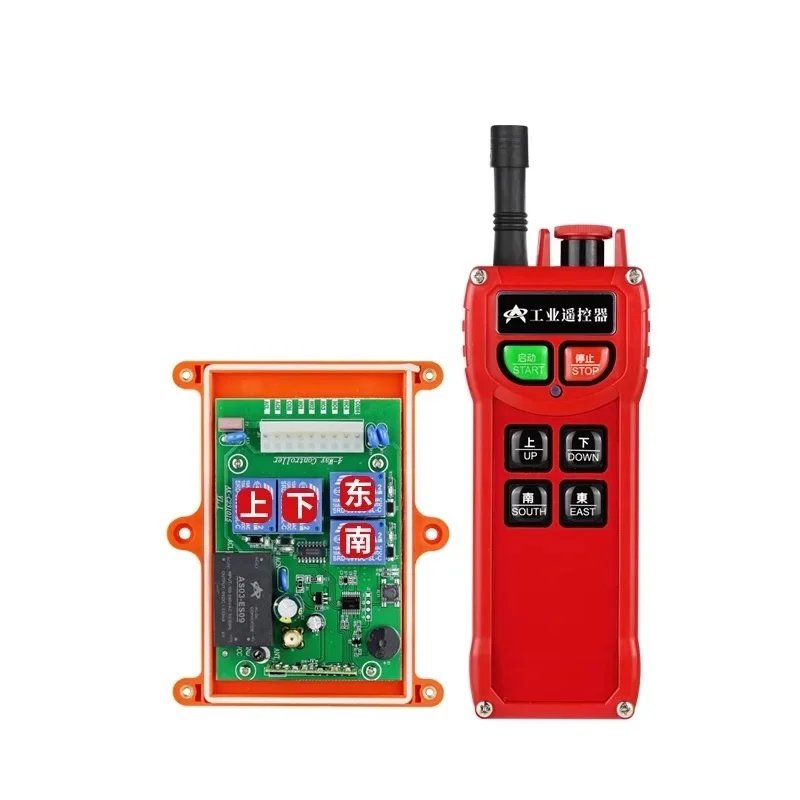

New AC220V 4CH Industrial Remote control electric hoist navigation crane wireless remote control Switch Controller

Model Number: AK-K211113

Working Voltage: DC2.4V—3V (Battery: AA*2)

Standby Current: 22uA

Working Current: 23mA

Transmit power: 14.5dBm

Frequency: 437 MHz

Modulation: FSK

Working Temperature:-20-70℃

Shell Material: ABS

Instructions:

Learning Methods:

Press once the learning key of the
controller, the indicator lights up to indicate enter the status of learning
code. Then keep pressing the remote control button “STOP” and “WEST” to
transmit the signal,the indicator light
flashes 3 times, indicating that the learning code is successful. If the code
is not learned within 10 seconds in the learning state, the code learning
indicator light of the controller will go out.

Note:

(1)Input voltage can not exceed the
operating voltage range.

(2)The transmitting distance may be reduced
in the environment of high wireless interference.

(3)Keep out of the reach of children.

(4)It is forbidden to use in a wet
environment, otherwise the remote control may be damaged.
