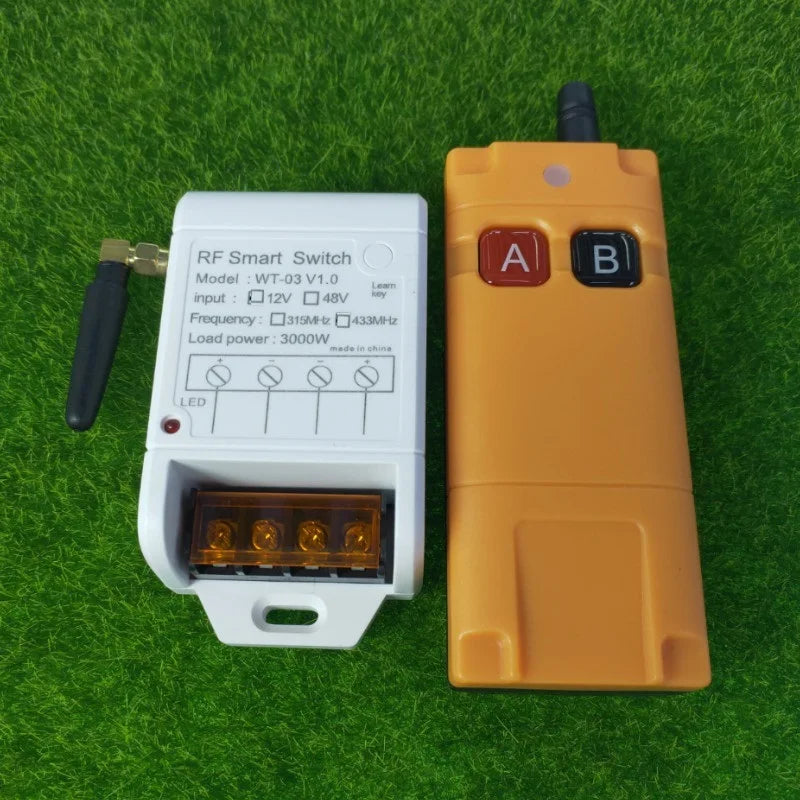

3000W RF Wireless DC 12V 24V 36V Remote Control Switch 1CH 30A Receiver Industrial Transmitter Forwater pump Lighting Universal

Receiver (switch)

Channel: 1CH

MAX Working Voltage : 12V 24V 36V 48V

Max load power:3000W

Max load current : 30A  (have better lower than 70%)

Working Frequency :  315 MHZ or 433 MHZ (optional)  315/433MHz can be choose, If there is no requirement. we will send 315 MHZ

Working temperature : -10'C - +60'C

Output way : Jog .Inter-lock .Self -lock is Adjustable

Code type :Learning code

size :110*55*35mm

working/output way

Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control )

Inter-lock /Latched : press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control  )

Learning  method

Input DC12V 24V 36V 48V for the Receiver. press the Learning Button until the Led indicator ON.  Then press transmitter , the Led indicator flash fast, it mean learning successfully.

Clearing Code:

Keeping press the learning Button on the receiver until the Led indicator ON and flash fast, it mean the code have been cleared successfully.

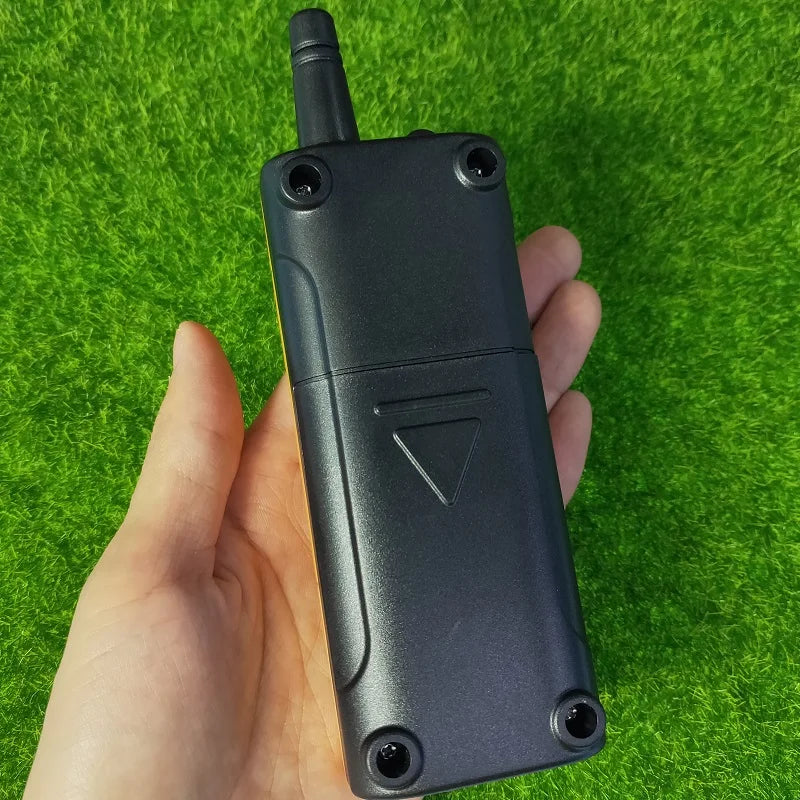

Remote control (transmitter)

Operating Voltage: DC12V

Operating Current: 30MA

Operating Frequency: 315/433MHz

Frequency Distance: 20M-1000M( Ideal Distance WITHOUT Any Block and Signal Interfere,Could Rise or Fall 10%-90% in Real Situation )

package included:

A:1*receiver

1* transmitter

B:1*receiver

2* transmitter

C:1*receiver

D: 1* transmitter
