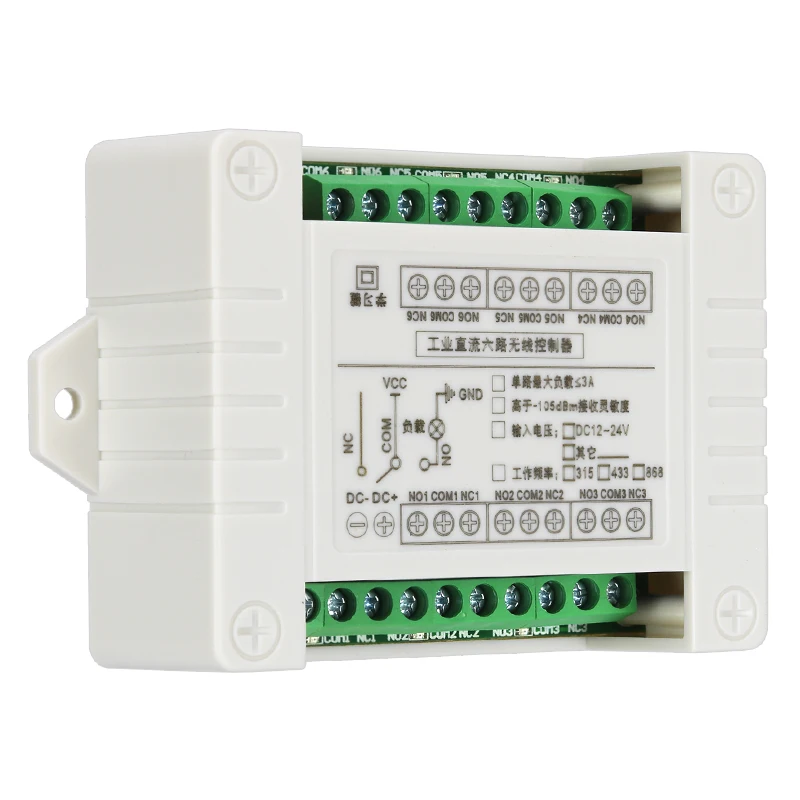

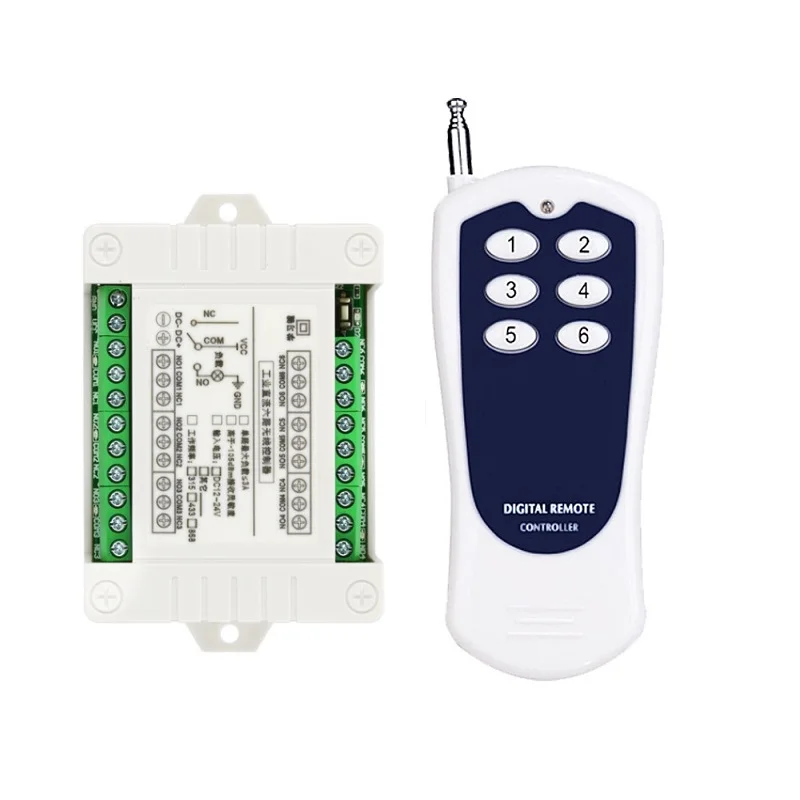

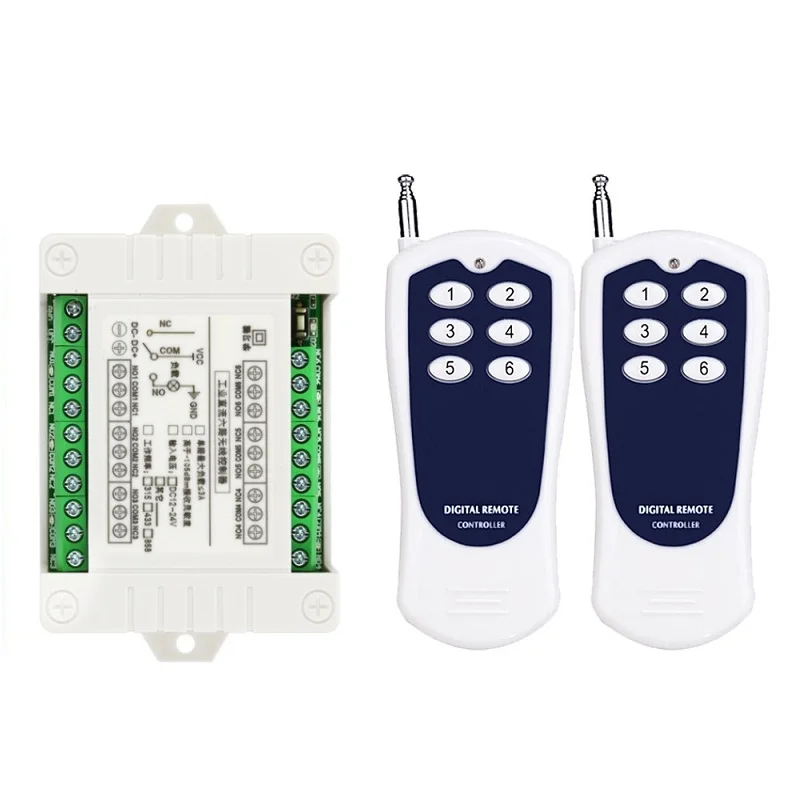

Universal 433mhz DC12V 24V 6 channel RF Wireless Remote Control switch system Receiver Transmitter lighting power 315/433mhz

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency !

Specifications:

Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

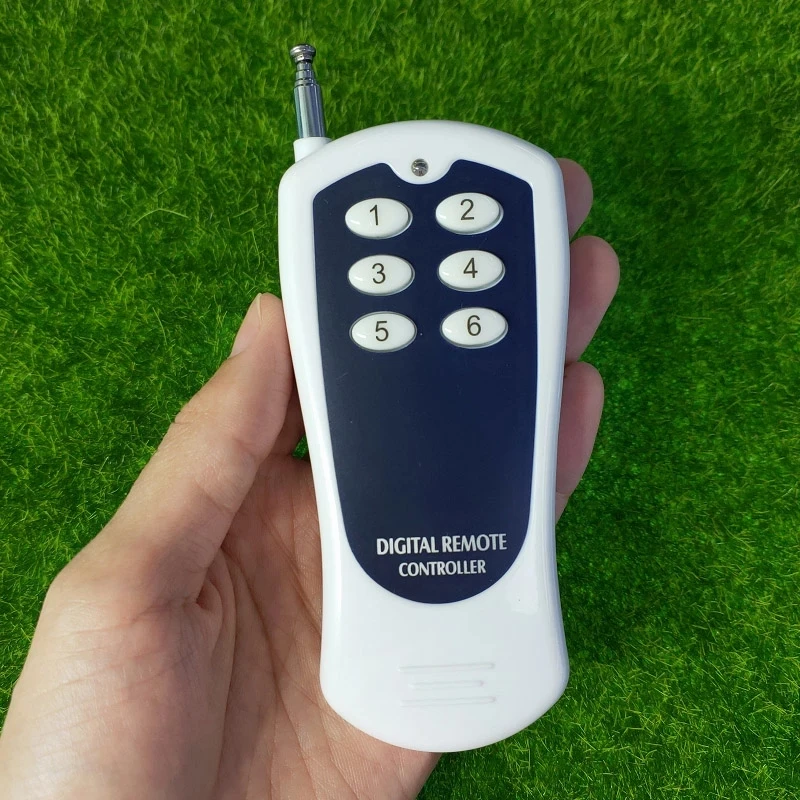

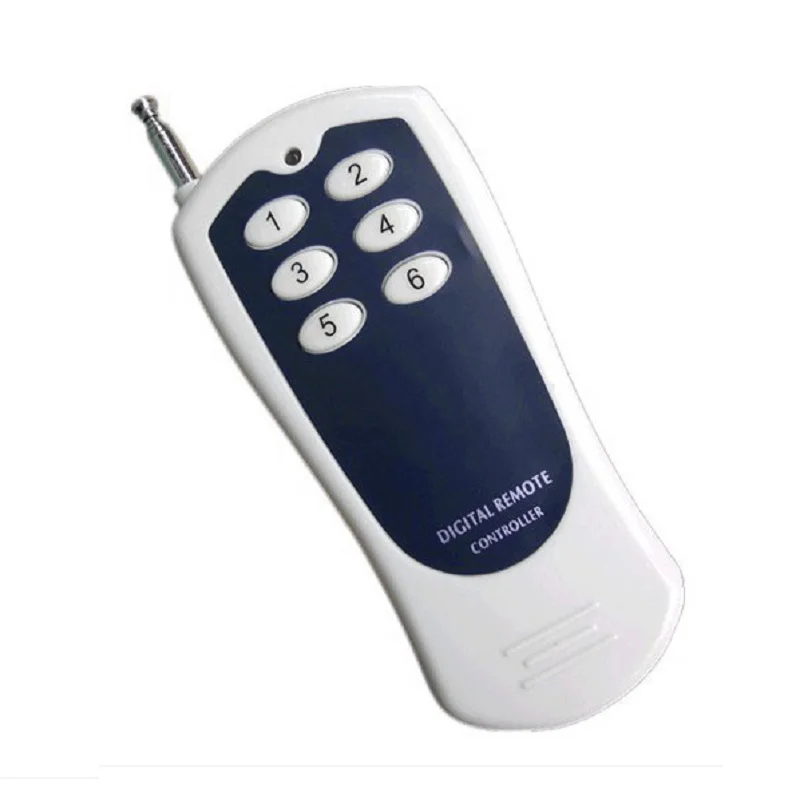

1.Transmitter

Channel: 6 CH

Remote Control Distance:50-500 M  ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)

IC:SC/Pt/2260/2262/2264/ EV1527

Encode: 2260/2262/2264/ EV1527

Frequency:315 or 433 MHz

Decode: Fixed code, soldering code

Power Supply (Operating Voltage): DC 12V / 24V

Current: 6 mA

Sensitivity:-105 dBm

Operating Temperature:-40‘C - 80’C

3.Function (Original Setting is  Momentary, Change it by yourself.)

1)Momentary/Jog:: (Press Button 1 to learn) Press->On;Press again->Off

Press one button for one time is working/ON , press the same button again is stop/OFF .

2)Toggle/Self-Lock: (Press Button 2 to learn) Press->On;Press other button->Off

3)Latched/Inter-Lock: (Press Button 3 to learn) Press and hold->On;Release->Off

Keep pressing one button is working /ON.Loosen your finger is stop/OFF.

4)Momentary/Jog & Toggle: (Press Button 4 to learn)  3 Buttons are Momentary and 3 Buttons are Toggle.

5)Momentary/Jog & Latched/Inter-Lock: (Press Button 5 to learn)  Channel 1 is Toggle , other 5 Channels are Momentary.

(Original Setting is  Momentary , change it by yourself.)

6)Toggle/Self-Lock & Latched: (Press Button 6 to learn)Channel 1 2 is Momentary , other 4 Channels are Latched.(Original Setting is  Latched , change it by yourself.)

4.Clear Code and Learn Code

1) Learn

press the learning button 1 time,the learning LED turns on,then press the transmitter key to learn.the learning led flashs and turns off. means learn sucessfully.

2) Clear

press the learning button for 5 seconds,the learning LED flashs and turns off, that means the code has been cleared.
