3000M Long Range AC220V 1CH RF Industrial Wireless Remote Control Relay Switch light /lamp/ window/Garage Doors shutters

Channel: 1CH

Working Voltage : 220V (180V-240V)

Max load current : 10A  (have better lower than 7A)

Working Frequency : 315Mhz/433Mhz

Receiver sensitivity: : -105Db

Working temperature : -10'C - +60'C

Output way : Jog .Inter-lock .Self -lockis Adjustable

Code type :Learning code

Switch size :55*32*17mm

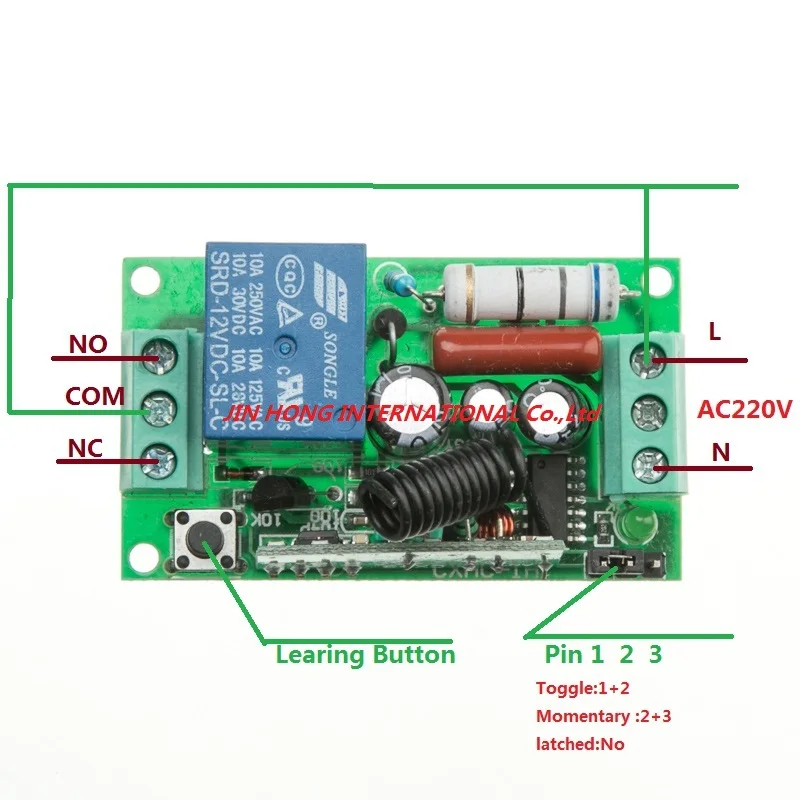

working/output way

Jog/Non-Latched:press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

Self -lock/Self-Latched:press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control )

Inter-lock /Latched :press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control)

Learning  method

Input AC220V for the Receiver. press the Learning Button until the Led indicator ON.  Then press transmitter , the Led indicator flash fast, it mean learning successfully.

Clearing Code:

Keeping press the learning Button on the receiver until the Led indicator ON and flash fast, it mean the code have been cleared successfully.

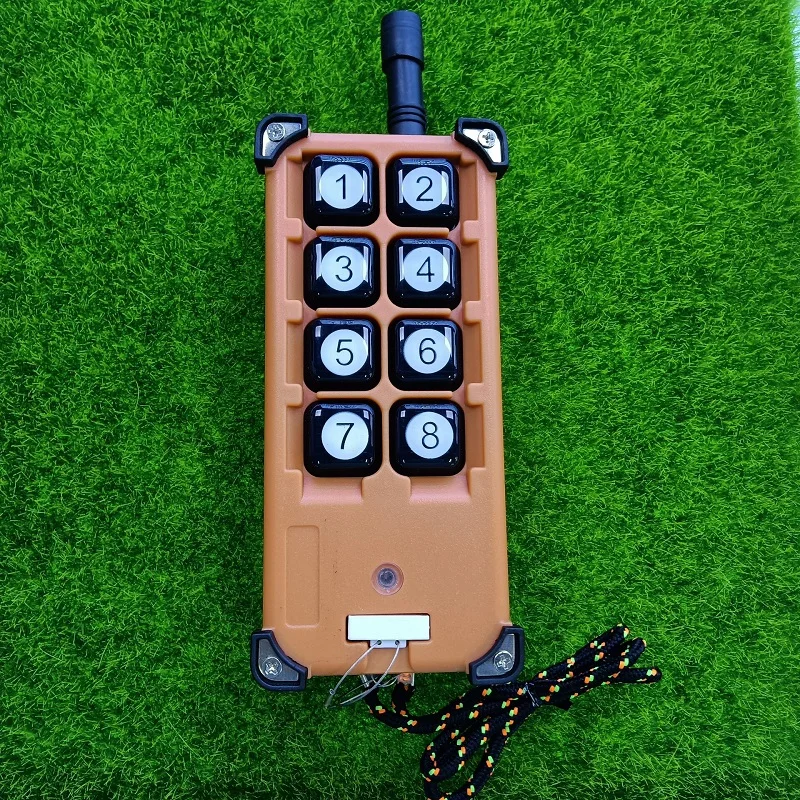

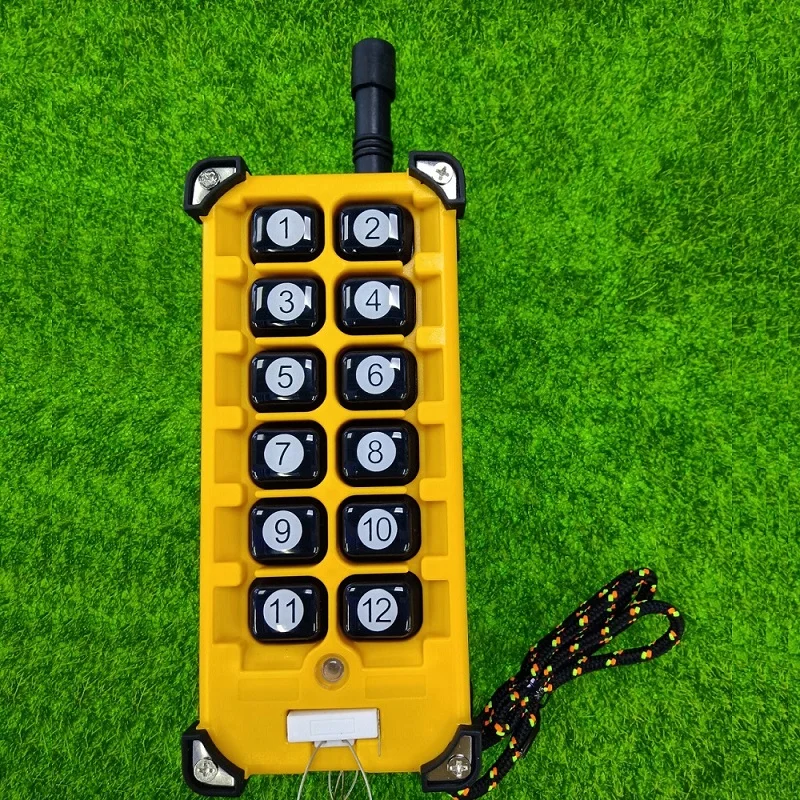

Remote control (transmitter)

Operating Voltage:DC12V

Operating Current:30MA

Operating Frequency:315/433MHz

Transmitting Distance: 100-3000m(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-50% with the block and signal interference ).

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

package included:

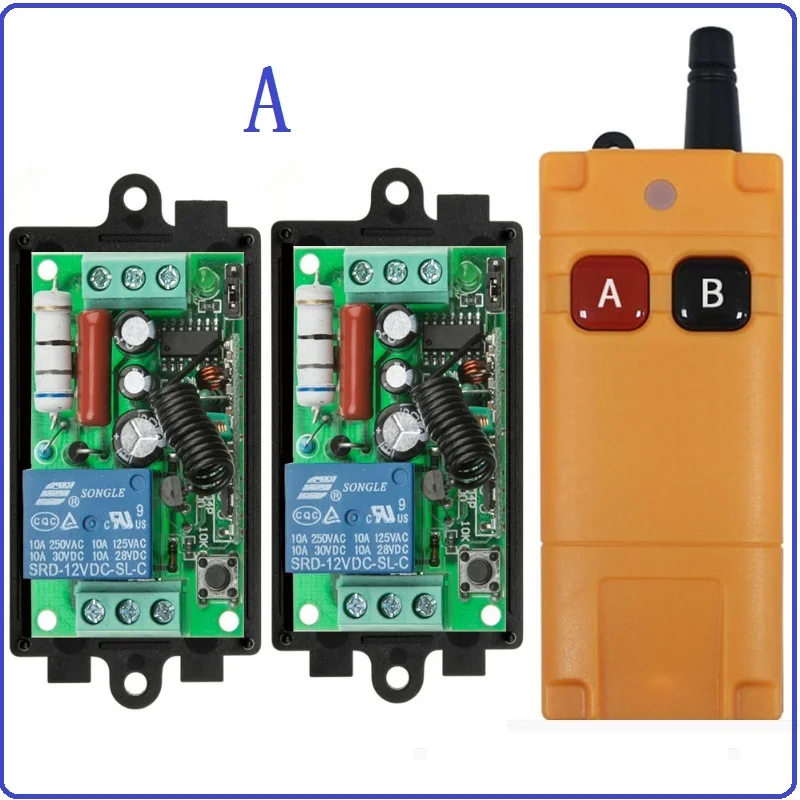

A:

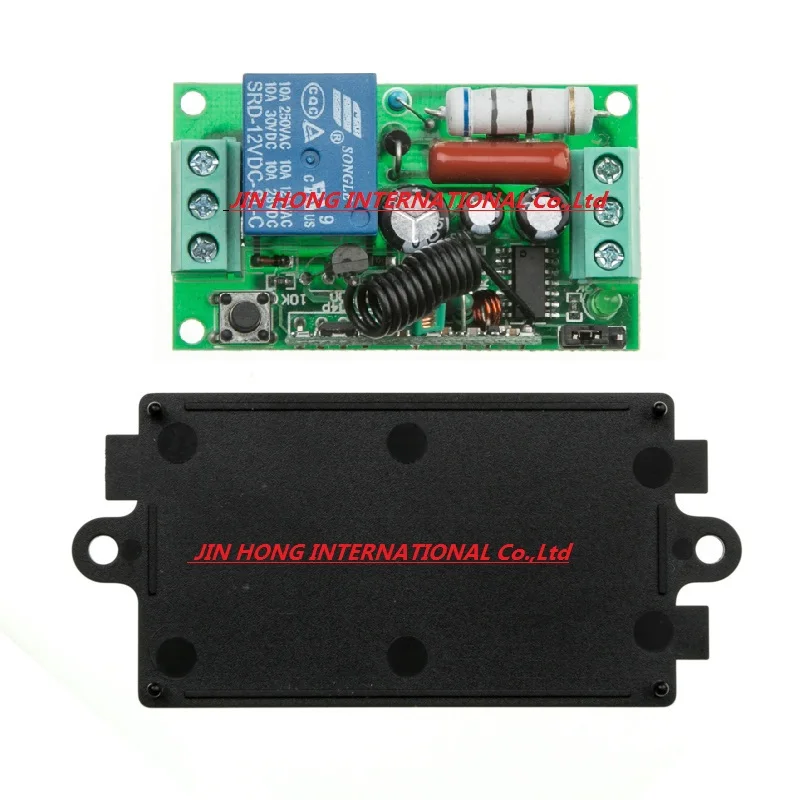

2 x Receivers(with cover)
