433Mhz Industrial Control Strong Stability 12V 24V 36V 48V 8CH RF Wireless Remote Control Switch & Remote Control System

12V 8CH RF Wireless remote control switch Radio Controller lamps & lanterns of motor controller + 1 * transmitter

Mainly used in electric door, window, lifting equipment, gateway, elevator, industrial control and security industry etc..

The main technical indicators

1, working voltage: the default shipping DC12V (can be customized DC24V)

2, working temperature: -40 degrees C - +80

3, the receiving sensitivity is not less than -105dBm

4, working frequency: 315/433MHz (optional)

5, output current: less than 3A

6, weight: 0.2KG

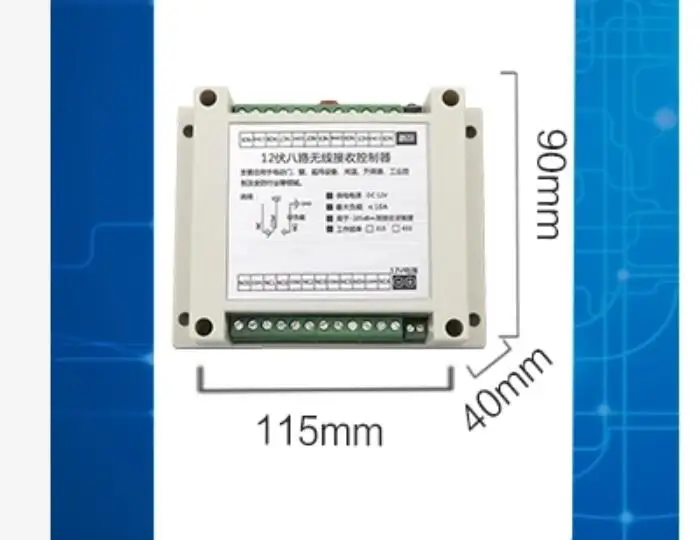

7, size: circuit board: 86.95*92.6*16.4mm with shell: mm 90.2*115*40

The output mode

According to the remote signal point -- 1 Key Learning

Signal interlock - press 2 key learning

According to the remote signal self-locking -- 3 key learning

1 - 4 points, 5 - 8 - way self-locking by remote control 4 key learning

1 - 4 points, 5 - 8 road interlock -- by remote control 5 key learning

1 - 4 - 5 8 interlocking self-locking -- by remote control 6 key learning

1 - 4 - 8 5 interlocking way points -- learning by remote control button 7

1 - 4 - 5 road self-locking, 8 way points -- learning by remote control button 8

Learning methods and steps

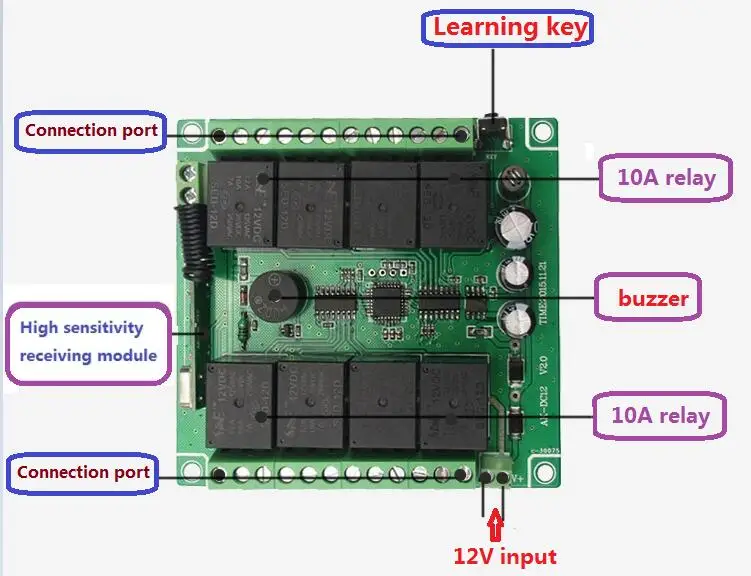

1, press the receiver learning key - the buzzer, said to enter the learning state,

2, press the remote control button, the buzzer stops any noise, said to have success in learning.

Clear stored information

Long press the receiver button until the buzzer sound to stop, said the stored information has been successfully cleared.

Note: 433mhz and 315 mhz are available ,433mhz will be sent out if there is no demand on frequency

package included:

1 * receiver

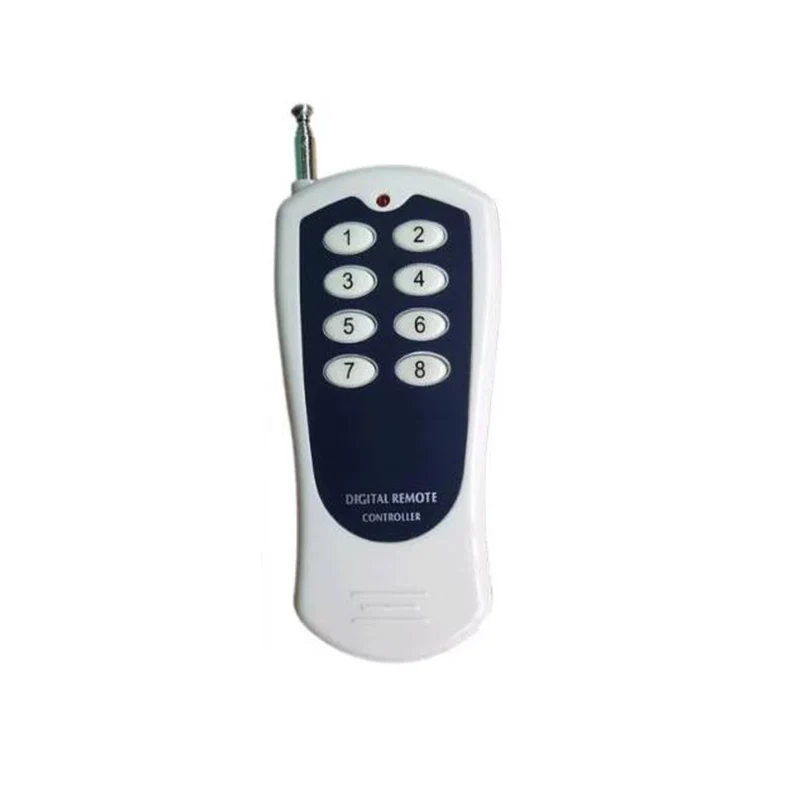

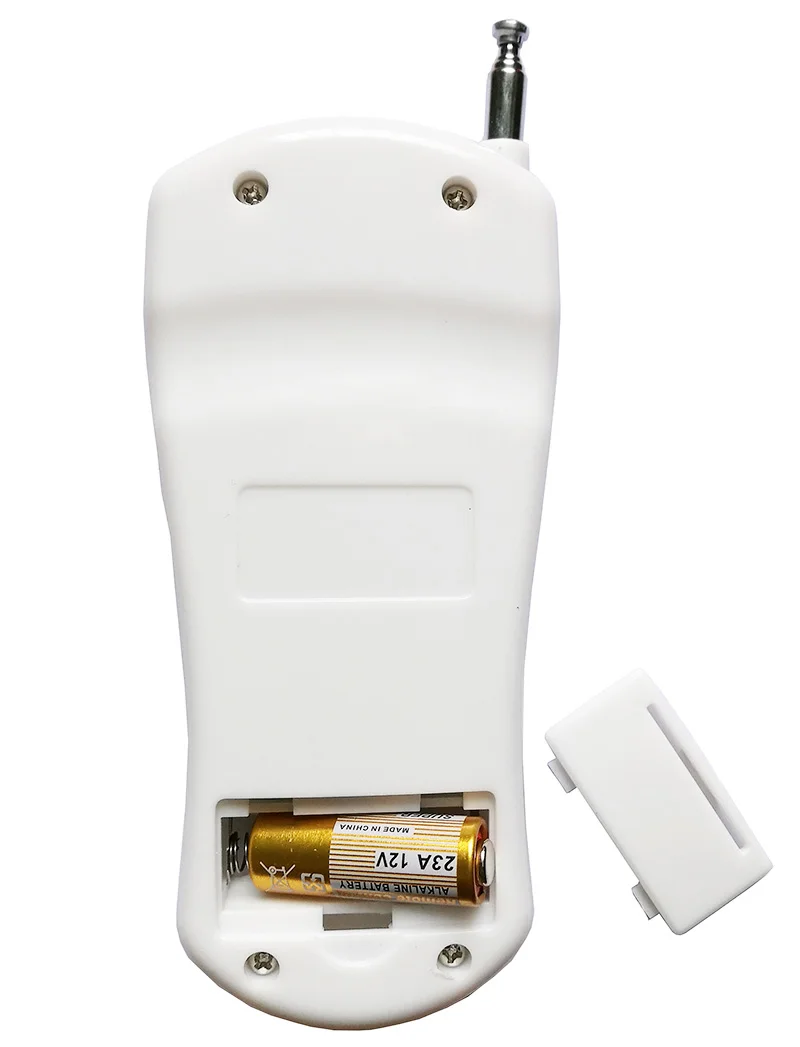

1 * transmitter (included battery)
