2000m Industrial remote control Home Smart AC85V 250V 110V 220V 4CH 10A RF Wireless Remote Switch With Manual-Function
2000m Industrial remote control Home Smart AC85V 250V 110V 220V 4CH 10A RF Wireless Remote Switch With Manual-Function
Regular price
$38.36 USD
Regular price
$24.08 USD
Sale price
$38.36 USD
Unit price
per
Couldn't load pickup availability
433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency !
Remote Control Distance:50-2000 M ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)

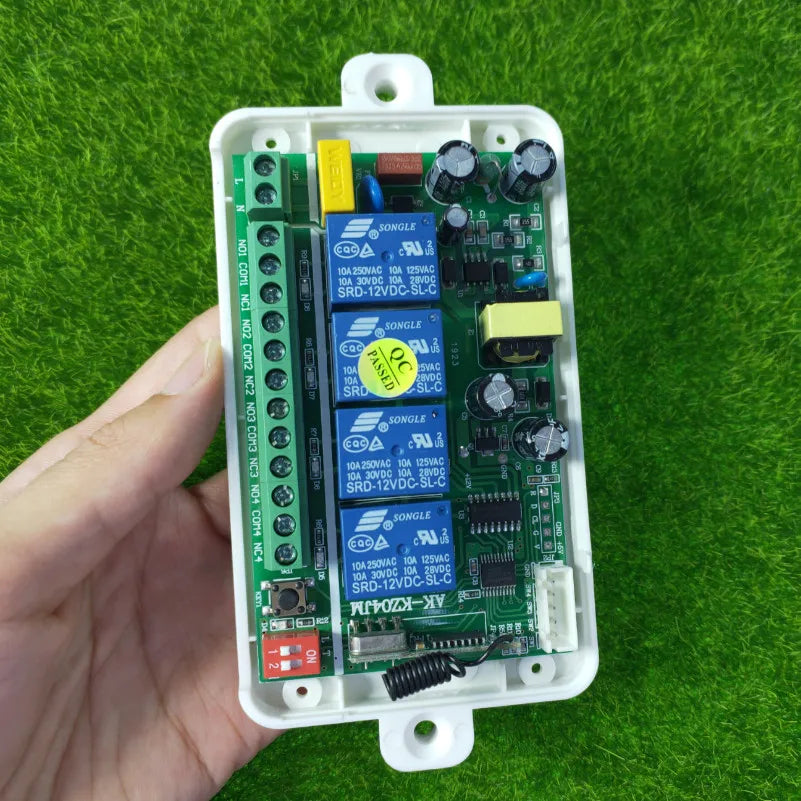

About Receiver:
Model No.: AK-KZ04JM
1. Working voltage: AC85-250V
2. Working manner: RF+manual control
3. Working temperature: -40 Degree +80 Degree
4. Receiver sensitivity: more than -110dBm
5. Working frequency: 315/433mhz
6. Output voltage: signal output and AC option
7. Output current: Less than 10A
8. Max load current: 40A
9. Size: 131 x 67 x 25mm
(1).Transmitter
Channel: 4 CH
Remote Control Distance:50-2000 M ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)
IC:SC/Pt/2260/2262/2264/ EV1527
Encode: 2260/2262/2264/ EV1527
Frequency:315 or 433 MHz
Size: 150mm x 48mm x 28mm
Power Supply: 1 X 6F22 9V Battery(with battery)
About Working way:
Working way changed by DIP switch
Momentary: 1,2 position default
Relay: Press and hold -> On; Release -> Off.
Toggle: 1 on position ,2 position default
Relay: Press -> On; Press same button again -> Off·
Latched: 2 on position ,1 position default
Relay: Press -> On; Press other button -> Off.
About Learning and clearing Method:
Learning:Press learning button, the indicator flash 1 time, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.
Clearning: Hold press learning button about 5-8 seconds,,indicator flash four times, it means clearning code successful.
About Transmitter:
1.Buttons: 4 Buttons
2.Working Voltage:DC6V (2PCS CR2016)
3.Operating frequency :433MHz
4.Remote Distance: 20-100M
5.Operating Current: 13 mAh
6.Encode: Fixed code / EV1527 code
7.Size: 5.7 x 3.2 x 1.1cm
433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency !

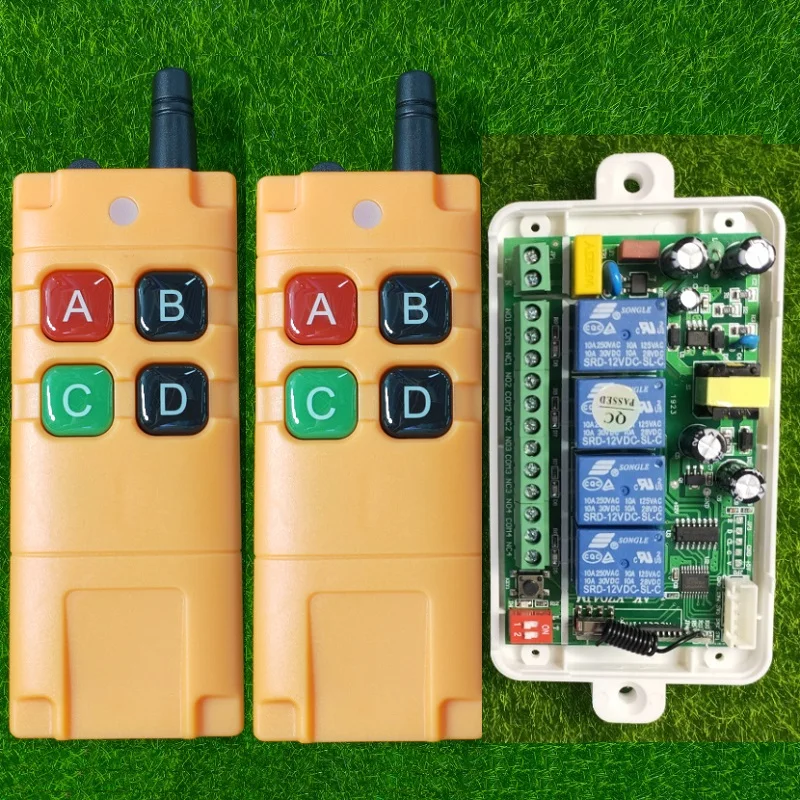

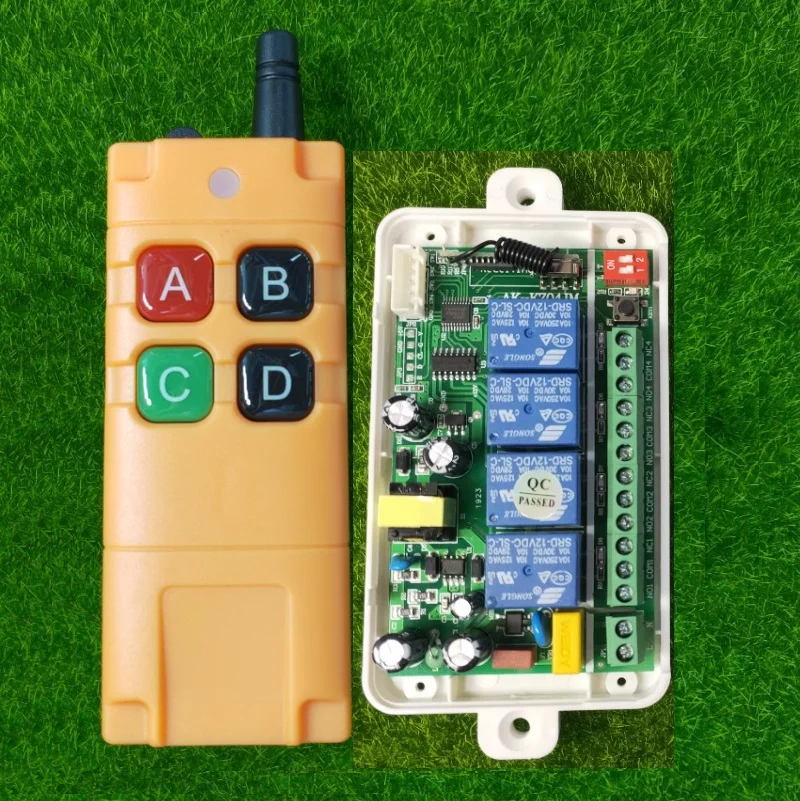

pacote inclued:
A:
1x Receiver(with cover)
1 x Transmitter(with battery)
B:
1 x Receiver(with cover)
2 x Transmitter(with battery)
C:
1x Receiver(with cover)
D:
1x Transmitter(with battery)
