Waterproof Industrial remote control Home Smart AC85V 250V 110V 220V 4CH 10A RF Wireless Remote Switch With Manual-Function
Waterproof Industrial remote control Home Smart AC85V 250V 110V 220V 4CH 10A RF Wireless Remote Switch With Manual-Function
Regular price
$20.28 USD
Regular price
$16.08 USD
Sale price
$20.28 USD
Unit price
per
Couldn't load pickup availability
only have 433mhz frequency !
Remote Control Distance:50-200M ( Ideal Distance without any block and signal interfere , it would rise and fall about 50% with the block and signal interference.)

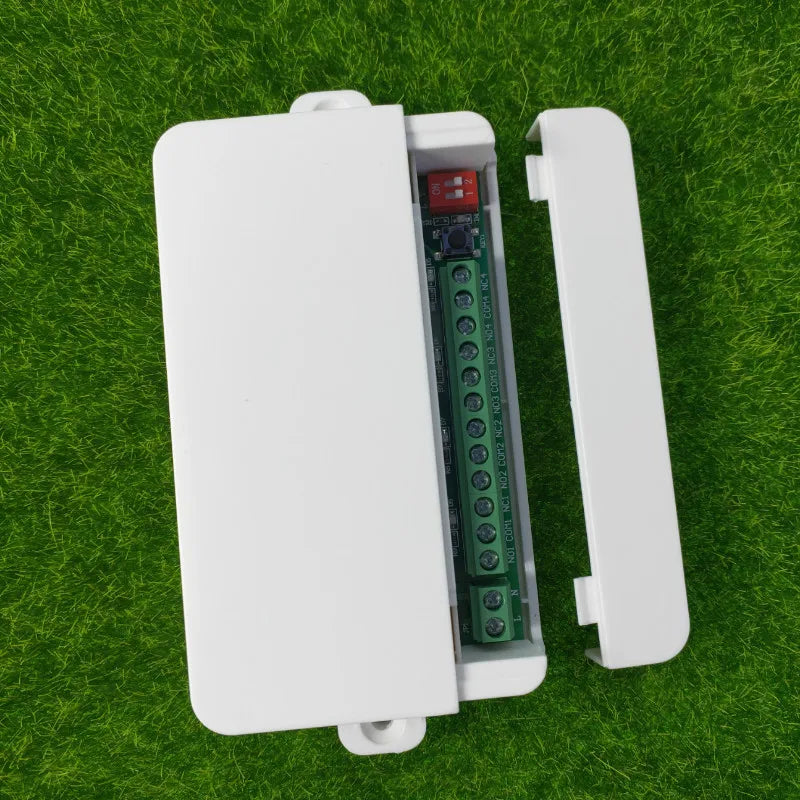

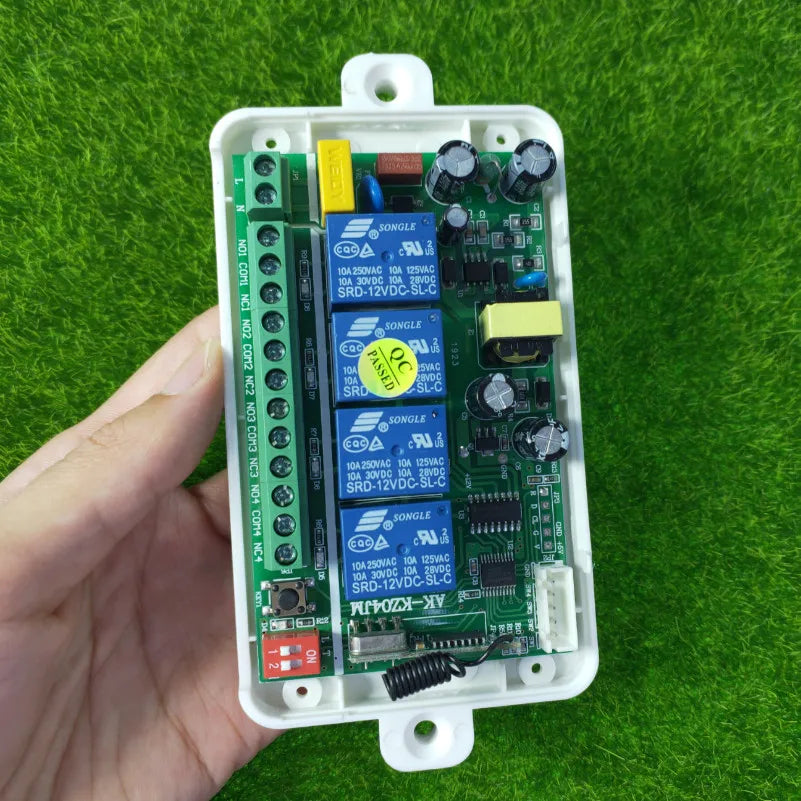

About Receiver:
Model No.: AK-KZ04JM
1. Working voltage: AC85-250V
2. Working manner: RF+manual control
3. Working temperature: -40 Degree +80 Degree
4. Receiver sensitivity: more than -110dBm
5. Working frequency: 315/433mhz
6. Output voltage: signal output and AC option
7. Output current: Less than 10A
8. Max load current: 40A
9. Size: 131 x 67 x 25mm
(1).Transmitter
Channel: 4 CH
Remote Control Distance:50-200 M ( Ideal Distance without any block and signal interfere ,)
IC:SC/Pt/EV1527
Encode: EV1527
Frequency: 433 MHz
Size: 141mm x 53.5mm x 43.5mm
Power Supply: 2 X AA 1.5V battery not included
About Working way:
Working way changed by DIP switch
Momentary: 1,2 position default
Relay: Press and hold -> On; Release -> Off.
Toggle: 1 on position ,2 position default
Relay: Press -> On; Press same button again -> Off·
Latched: 2 on position ,1 position default
Relay: Press -> On; Press other button -> Off.
About Learning and clearing Method:
Learning:Press learning button, the indicator flash 1 time, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.
Clearning: Hold press learning button about 5-8 seconds,,indicator flash four times, it means clearning code successful.
only have 433mhz frequency !
pacote inclued:
A:
1x Receiver(with cover)
1 x Transmitter( AA1.5V battery not included )
B:
1 x Receiver(with cover)
2 x Transmitter(AA1.5V battery not included)
C:
1x Receiver(with cover)
D:
1x Transmitter(AA1.5V battery not included)
