AC 220 V 1CH 1500W Wireless Remote Control Switch System Receiver Transmitter 4PCS 2 Buttons Waterproof Remote 315mhz/433.92mhz

The company receives the remote control board, suitable for anti-theft alarm, remote control electric doors and Windows, signal control, industrial control, the electric control circuit of lifting equipment and so on.Remote control switch module relay contact output independently, is very suitable for direct control of all kinds of load;Products adopt wireless fixed code technology, omnidirectional, noninterference switch.Remote control switch circuit component materials buyers can contrast after purchase.
Receiving plate every road can withstand maximum 10 a current, ac load, can be directly driven each relay with a set of normally open, normally closed contacts.To prolong the service life of receiving plate, we don't recommend control high power load, advice each control power in the 1000 w (impedance load);600 w (inductive load);400 w (below the motor load).

1. Technical parameters

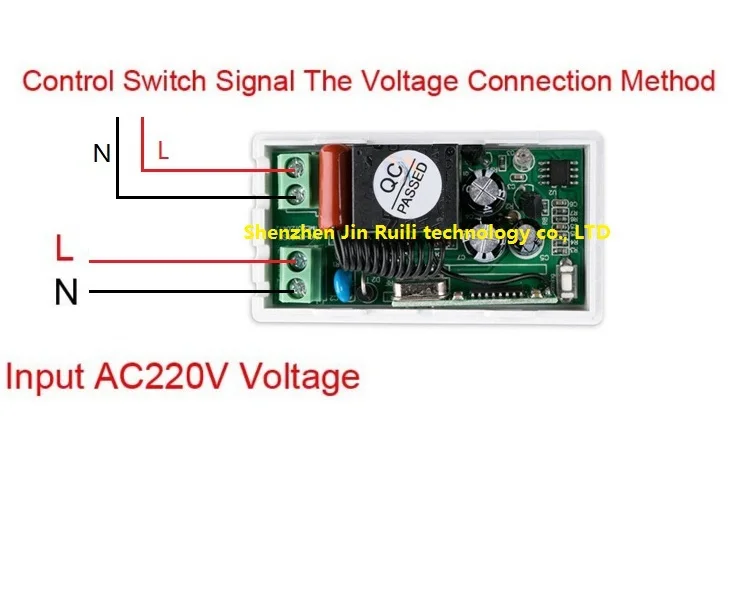

Working voltage: 220V
Work frequency: 315 MHz / 433 MHz
Maximum load: 1500 W
Working way: jog , self-lock and inter-lock(Adjustable by pad)

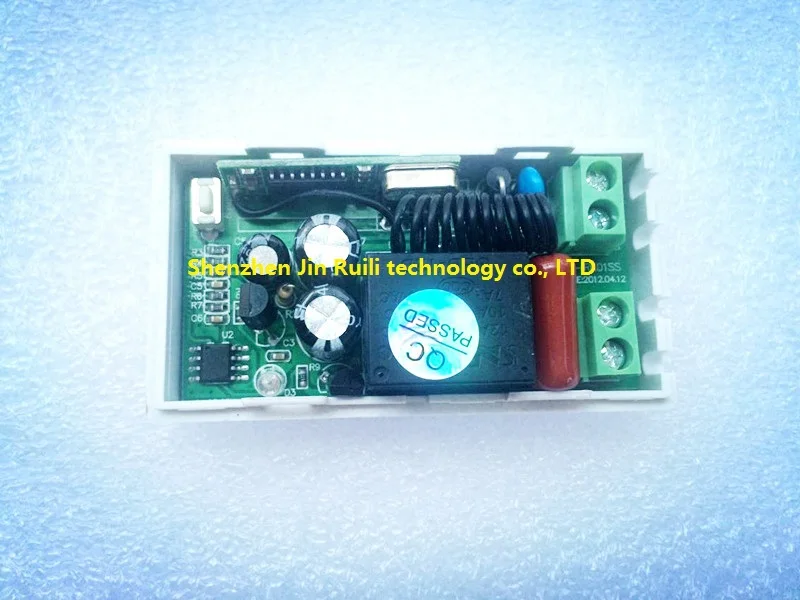

Circuit board size: 60 × 30 × 17 mm

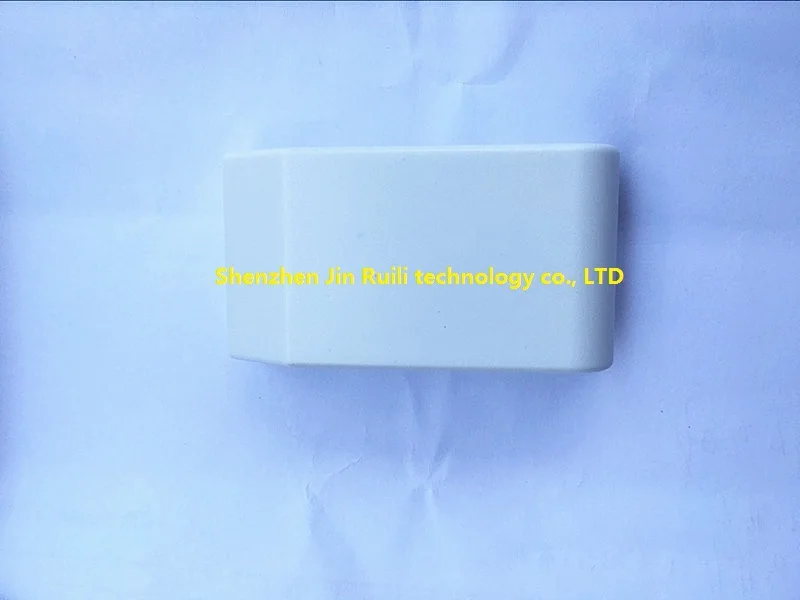

Shell size: 66 x 36 × 21 mm

Learning and removing method:

1 .There is a learning button on the control panel of touch switch, the button is used to
learn and remove the code.

2 .Press and hold the learning button for three seconds.When the indicator light flashes
,we enter the learning state. Press any key on the remote controller to emit signal, thelight flashes two times and off .It means you learn it successfully.

3 .It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote
controller.

4. Delete remote control method: hold down the learning button for about 8 seconds, theindicator light turns on to off, then the code you learned before will be deleted.

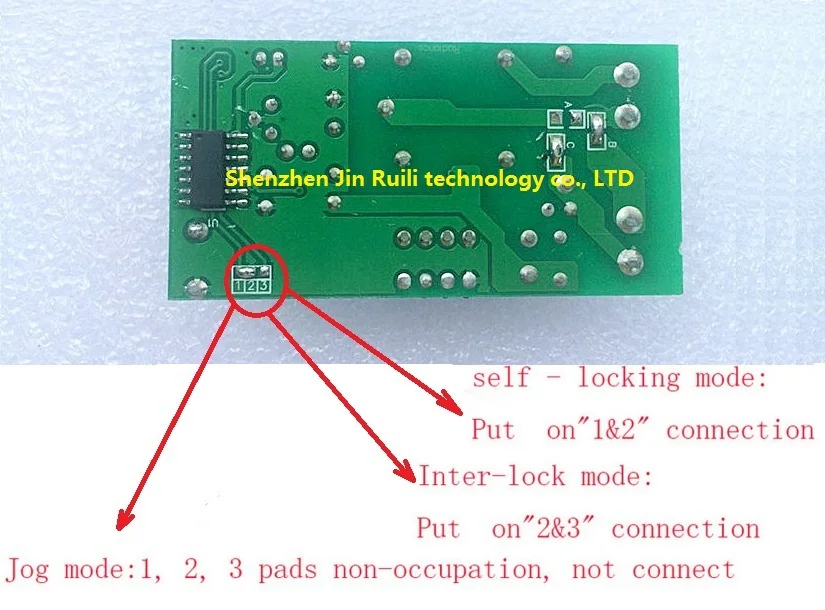

5. working way switching

Through the sub circuit board behind the pad 1, 2, 3 different local to switch working way
1 jog1, 2, 3 pads non-occupation, not connect
2 self-lock, shorted 1, 2
3, inter-locking shorted 2, 3

Jog---- press the button is ON . loosen your finger is OFF

Self -lock----- press one button for one time is ON .press the same button again is OFF

Inter-lock-------press one button is ON , press another button is OFF .

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

pacote inclui:

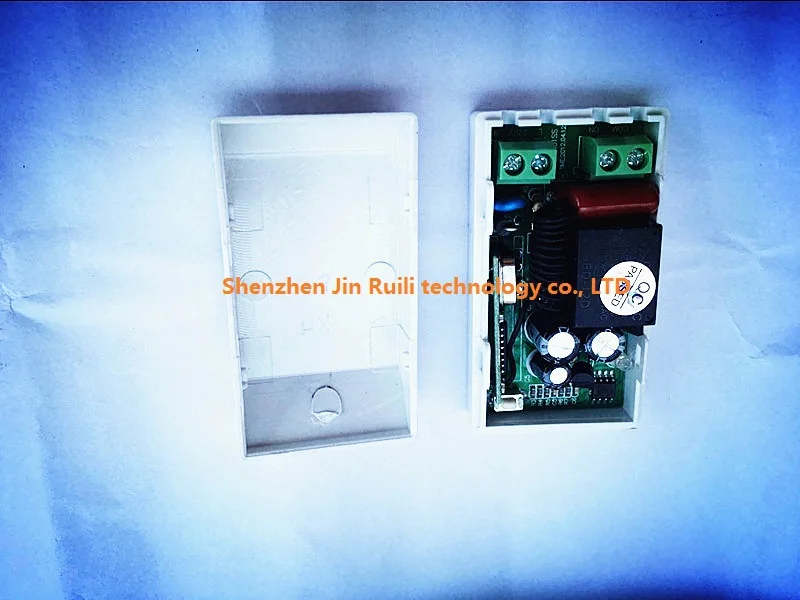

1 * receiver (with cover)
4 * transmitter (with battery)
